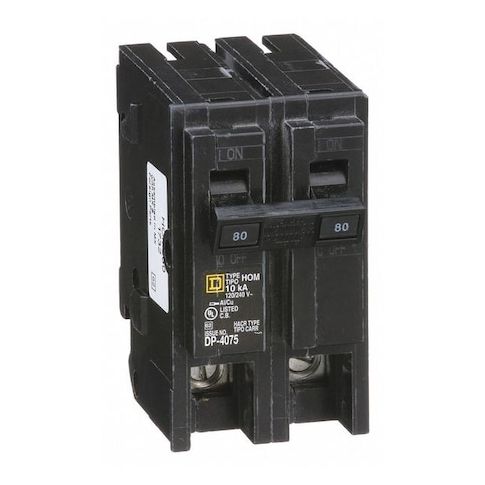

Miniature Circuit Breaker, HOMELINE Series, 80A, 2 Pole, 240V AC, 10kA at 240V AC MPN:HOM280
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3235942
Miniature Circuit Breaker, HOMELINE Series, 80A, 2 Pole, 240V AC, 10kA at 240V AC
Protect your electrical system with the HOMELINE Series 80A Miniature Circuit Breaker from Square D. This reliable breaker is designed for use in Homeline Load Centers and provides a maximum short-circuit current rating of 10kA at 240V AC. Its 2-pole design and 80A capacity make it suitable for a wide range of applications, from residential to commercial installations. With its compact size and easy-to-use paddle actuator, this breaker is perfect for upgrading or replacing existing circuit protection in homes and businesses, ensuring safe and efficient electrical operation.
Top product features:
- 2 Pole design allows for two independent circuits to be protected.
- Circuit Breaker Actuator Paddle provides a user interface for manually tripping the circuit breaker.
- Max. AIR Rating of 10kA at 120/240V AC indicates the product's ability to handle high fault currents.
Top product applications:
- Residential electrical panels
- Commercial electrical panels
- Industrial electrical panels
Miniature Circuit Breaker, Amps 80 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series HOM, Phase Single, Series HOM, Max. AIR Rating 10kA at 120/240V AC, For Use With Homeline Load Center, Terminal Connection Lug, Frame Size 100A/HOM, Length 3.13 in, Width 2 in, Depth 2.98 in, Min. Operating Temp. 77 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 3.40
- Package Height: 2.30
- Package Weight: 0.85
Product info last updated on February 4, 2026 12:15am UTC
Category: Circuit Protection
