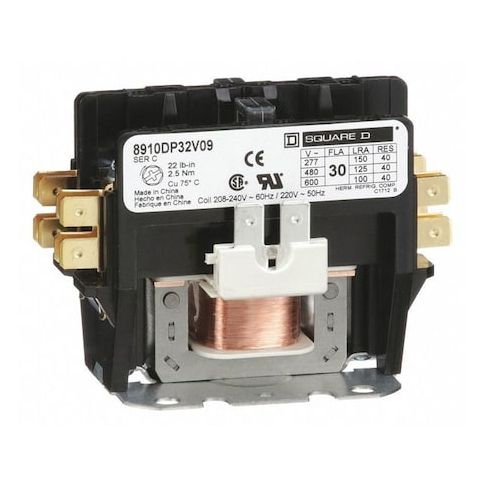

Definite Purpose Magnetic Contactor, 208V-240V AC, 2 P, Non-Reversing, 1 Phase MPN:8910DP32V09
Free Shipping
In Stock
The SQUARE D 8910DP32V09 Definite Purpose Magnetic Contactor is a reliable and versatile tool for managing and automating heavy-duty machinery operations in various industries. Its non-reversing action ensures consistent current flow direction, while its 208-240V AC coil voltage rating and 2.22-inch depth make it suitable for a range of applications. Ideal for use in HVAC, data processing, and manufacturing, this contactor can handle inductive loads up to 30A and resistive loads up to 40A, making it a valuable addition to any industrial electrical setup. Its compact design and high-performance capabilities make it an excellent choice for professionals seeking efficient and reliable control solutions.
Top product features:
- Operates by responding to electrical impulses, allowing or interrupting power supply based on the need.
- Maintains a constant current flow direction, preventing reversal of power flow.
- Has a capacity limit up to 30 A for inductive loads and up to 40 A for resistive loads.
Top product applications:
- HVAC
- Data processing
- Manufacturing
The SQUARE D - 8910DP32V09 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – this contactor maintains a constant current flow direction.
- Coil Voltage: Rated for operation within the specified voltage ranges of 208-240V AC.
- Depth: With a depth measurement of 2.22 inches, it indicates how far it extends into the mounting surface or enclosure.
- Frequency: Specified to operate at an electrical cycle frequency of 50/60 Hz.
- Full Load Amps-Inductive & Resistive: Has a capacity limit up to 30 A for inductive loads and up to 40 A for resistive loads as per product specifications.
- Horsepower @ Single Phase -120V & -240V AC: Is designed for controlling power outputs under specific conditions, specifically while operating on single-phase voltages at both levels respectively.
- Number of Normally Open Main Contacts & Poles: Contains two main contacts that remain open when not powered and can switch two circuits simultaneously offering versatile control options in various industrial applications
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 2.50
- Package Height: 1.00
- Package Weight: 0.51
