Miniature Circuit Breaker, HOMELINE Series, 30A, 1 Pole, 120V AC, 10kA at 120/240V AC MPN:HOMT3020
Free Shipping
In Stock
Protect your home's electrical system with the Homeline Miniature Circuit Breaker, a reliable and easy-to-install solution for circuit protection. This 30A, 1-pole breaker is designed for fast installation and superior circuit protection, ensuring your home's electrical system runs safely and efficiently. With a 10kA breaking capacity and acceptance of 14 AWG to 8 AWG copper or aluminum wire, this breaker is perfect for residential electrical panels. Its compact design and plug-in mounting make it ideal for use in load centers, providing individual switching and tripping action for each pole. UL Listed for added peace of mind.
Top product features:
- Fast installation is enabled by the circuit breaker's design.
- Superior circuit protection is provided by the breaker's thermal magnetic design.
- The circuit breaker has a 10kA breaking capacity.
Top product applications:
- Residential Electrical Panel Installation
- Commercial Electrical Panel Installation
- Industrial Electrical Panel Installation

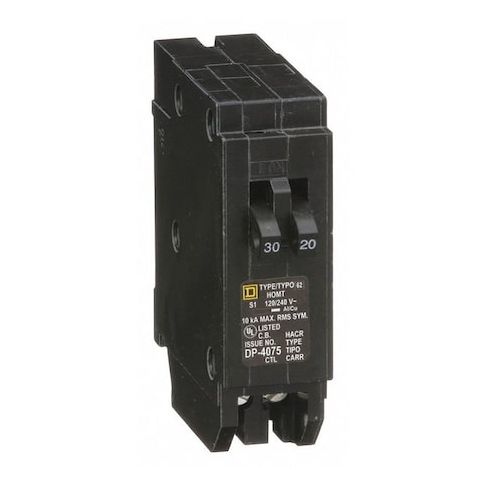

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This tandem HOM miniature tandem breaker with plug in mounting is rated 30A and 20A at 120/240 V. This circuit breaker provides 10 kA breaking capacity. This tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 1.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 3.40
- Package Height: 1.60
- Package Weight: 0.45
