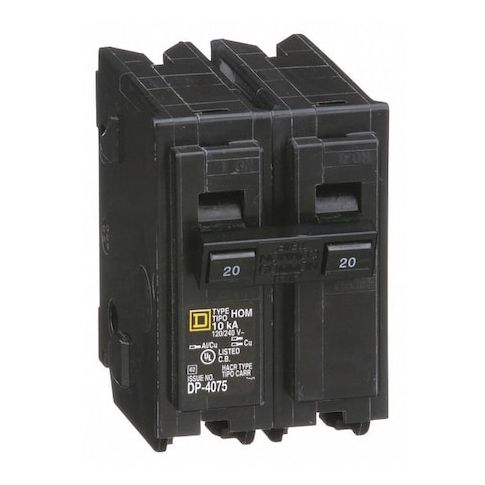

Miniature Circuit Breaker, HOMELINE Series, 20A, 2 Pole, 240V AC, 10kA at 240V AC MPN:HOM220
Free Shipping
In Stock
Protect your electrical system with the Square D Homeline miniature circuit breaker, designed for fast installation and superior circuit protection. This 20A, 2-pole breaker is ideal for use in residential and commercial applications, providing standard circuit protection and HACR rating. With a 10kA breaking capacity, it offers reliable and efficient operation. The plug-in mounting design makes installation easy and convenient. Perfect for use in load centers, this circuit breaker is UL Listed and suitable for 120/240VAC applications, making it a reliable choice for a wide range of electrical needs and installations.
Top product features:
- Provides standard circuit protection
- Offers a 10 kA breaking capacity
- Accepts wire sizes from 14 AWG to 8 AWG copper or aluminum wire
Top product applications:
- Residential Lighting Circuits
- Commercial Lighting Circuits
- Industrial Power Distribution
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 3.00
- Package Height: 2.00
- Package Weight: 0.67
