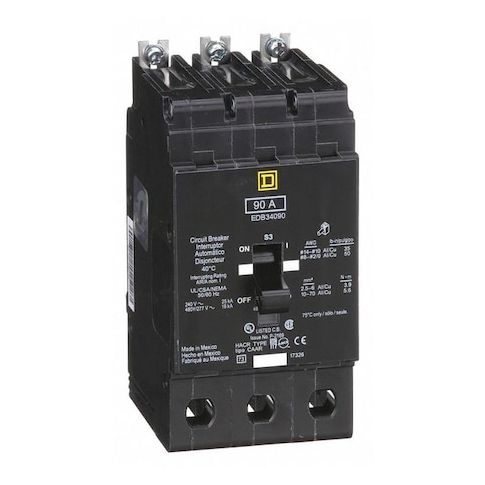

Miniature Circuit Breaker, E FRAME Series, 90A, 3 Pole, 277/480V AC, 25kA at 120V AC MPN:EDB34090
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3095583
Miniature Circuit Breaker, E FRAME Series, 90A, 3 Pole, 277/480V AC, 25kA at 120V AC
Protect your electrical system with the Square D E FRAME Series Miniature Circuit Breaker, designed for use in NF Panelboards. This 3-pole, 90A breaker is rated for 277/480V AC and 25kA at 120V AC, making it ideal for commercial and industrial applications. Its compact size and bolt-on mounting style make it easy to install, while its toggle actuator provides a reliable and intuitive operation. With a maximum operating temperature of 104°F, this breaker is suitable for a wide range of environments. Perfect for use in data centers, office buildings, and other commercial spaces, this breaker provides reliable overcurrent protection and peace of mind.
Top product features:
- Protects against electrical overloads up to 25kA at 120V AC
- Switches off power to three-phase circuits with a single toggle action
- Mounts securely to Square D NF panelboards with bolt-on design
Top product applications:
- Main Distribution Panel
- Commercial Lighting and Power Systems
- Industrial Power Distribution Systems
Miniature Circuit Breaker, Amps 90 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 125/250V DC, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Three, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 2.94 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 4.70
- Package Height: 3.50
- Package Weight: 3.70
Product info last updated on February 6, 2026 11:21pm UTC
Category: Circuit Protection
