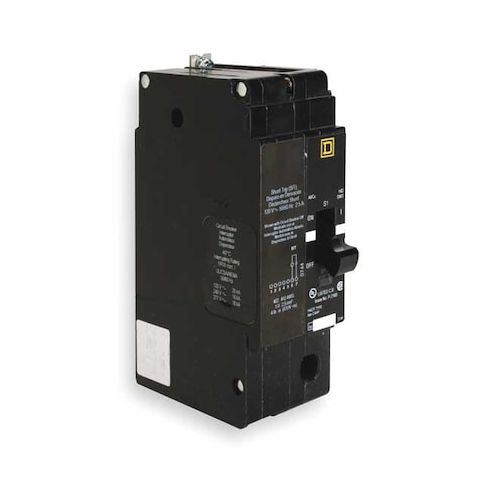

Miniature Circuit Breaker, E FRAME Series, 70A, 1 Pole, 277V AC, 25kA at 120V AC MPN:EDB14070SA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3088687
Miniature Circuit Breaker, E FRAME Series, 70A, 1 Pole, 277V AC, 25kA at 120V AC
Protect your electrical systems with the Square D E FRAME Series Miniature Circuit Breaker, designed for use with NF Panelboards. This 70A, 1-pole circuit breaker provides reliable overcurrent protection for single-phase applications, including commercial and industrial settings. Its shunt trip feature allows for easy installation and maintenance, while its bolt-on mounting style ensures a secure connection. With a maximum air rating of 18kA at 277/480V AC, this circuit breaker is suitable for a wide range of applications, including lighting, HVAC, and power distribution systems. Its compact design and easy installation make it an ideal choice for panelboards and load centers.
Top product features:
- Trip-free shunt trip mechanism
- Breaks circuit in 1 pole
- Handles 25kA at 120V AC
Top product applications:
- Panelboards
- Load Centers
- Electrical Distribution Systems
Miniature Circuit Breaker, Amps 70 A, AC Voltage Rating 277V AC, Circuit Breaker Type Shunt Trip, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Single, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 1.96 in, Depth 4.05 in, Min. Wire Size 14 AWG, Max. Wire Size 2 AWG
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.30
- Package Width: 4.70
- Package Height: 4.80
- Package Weight: 1.90
Product info last updated on April 5, 2026 6:35am UTC
Category: Circuit Protection
