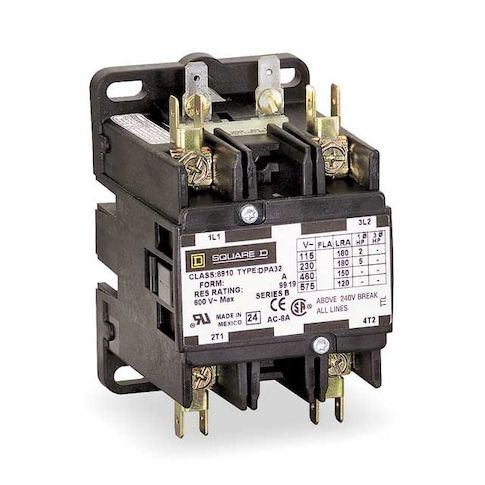

Definite Purpose Magnetic Contactor, 120V AC, 2 P, Non-Reversing, 1 Phase, Box Lug & Quick Connect MPN:8910DPA92V02
Free Shipping
In Stock
The SQUARE D 8910DPA92V02 Definite Purpose Magnetic Contactor is an industrial electrical device designed for heavy-duty applications. It controls power flow by responding to electrical impulses, allowing or interrupting power supply as needed. This tool is commonly used in HVAC, data processing, and manufacturing sectors to manage and automate machinery operations. Its non-reversing action ensures constant current flow direction, while its 120V AC coil voltage and 90A/120A full load amp ratings make it suitable for a wide range of applications. By automating power flow, users can improve efficiency, reduce downtime, and increase productivity in their operations.
Top product features:
- Non-Reversing Action: The contactor maintains a constant current flow direction.
- Operates at a coil voltage of 120V AC.
- Rated for maximum currents up to 90 A (inductive loads) and 120 A (resistive loads).
Top product applications:
- HVAC
- Data processing
- Manufacturing
The SQUARE D - 8910DPA92V02 is a Definite Purpose Magnetic Contactor, an industrial electrical device that controls the flow of power in heavy-duty applications. It operates by responding to electrical impulses, either allowing or interrupting power supply based on need. This tool is commonly used for managing and automating machinery operations across various sectors such as HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor maintains a constant current flow direction.
- Coil Voltage: Rated for operation at a coil voltage of 120V AC.
- Depth: Extends 4.37 inches into the mounting surface or enclosure.
- Enclosure Type: Open – There's no protective casing around this contactor.
- Frequency: Specified to operate within the frequency range of 50/60 Hz.
- Full Load Amps-Inductive & Resistive: Rated for maximum currents up to 90 A (inductive loads) and 120 A (resistive loads).
- Horsepower @ Single Phase - Rated for use with motors with a horsepower rating up to a maximum limit as specified: Single Phase - Up to max. HP:7½ @120v, max. HP:20 @230v & @240v
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.60
- Package Height: 6.10
- Package Weight: 3.00
