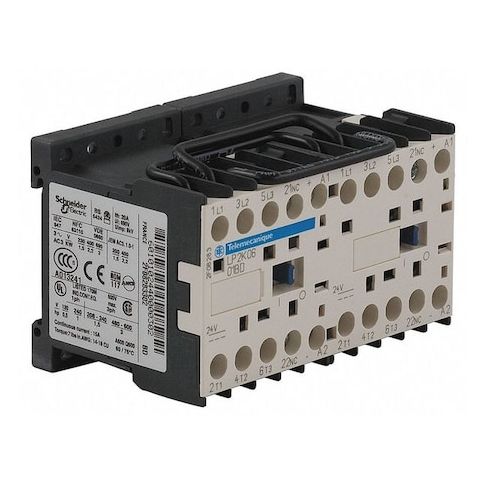

IEC Miniature Magnetic Contactor, 1NC, 24V DC, 3 P, Reversing, Screw Clamp MPN:LP2K1201BD
Free Shipping
In Stock
The Square D IEC Miniature Magnetic Contactor is a compact and reliable solution for controlling low-power circuits. Its 24V DC coil provides reversing action for motor direction control, making it ideal for applications where motor direction needs to be changed frequently. With 3 poles and 1 NC auxiliary contact, it can be used in a variety of applications such as conveyor belt control, robotic arms, and other machinery. Its compact design and screw clamp terminals make it easy to install and mount on a DIN rail or plate, making it a great choice for industrial control systems and automation projects.
Top product features:
- Compact design for space-saving installation
- Reversing action for motor direction control
- 1NC auxiliary contact for added functionality
Top product applications:
- Motor direction control
- Low-power circuit control
- Reversing applications in industrial automation systems
The IEC Miniature Magnetic Contactor is a compact, electrically operated switching device used to control low-power circuits. It employs a 24 V DC coil to open and close contacts and provides reversing action for motor direction control. The unit has 3 poles and 1 NC auxiliary contact
- it uses screw clamp terminals and can be mounted on a DIN rail or plate with no enclosure. It is rated for operation within the specified voltage and frequency ranges and features IP20 protection, with an operating temperature range from -13°F to 122°F.
- Coil voltage: 24 V DC
- - Poles: 3
- - Reversing: Yes
- - Auxiliary contacts: 1NC
- - Auxiliary contact form: 1NC
- - Electrical connection: Screw Clamp Terminals
- - Mounting style: DIN Rail, Plate
- - Enclosure: No Enclosure
- IP20
- - Rated voltage: 690 V AC
- Frequency: 50/60 Hz
- - Net weight: 0.48 kg
- - Series: TeSys K
- - Fuse amps: 25 A (Power Circuit)
- 10 A (Signalling Circuit)
- - Rated making capacity: 110 A (AC Signalling)
- 144 A (AC Power)
- - Mechanical durability: 5 Mcycles
- - Electrical operating durability: 1,300,000 cycles
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 2.40
- Package Height: 2.50
- Package Weight: 0.85
