Miniature Circuit Breaker, E FRAME Series, 15A, 2 Pole, 277/480V AC, 25kA at 120V AC MPN:EDB24015
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2966275

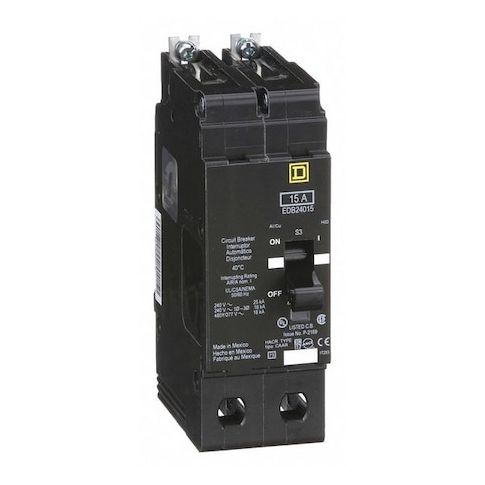

Miniature Circuit Breaker, E FRAME Series, 15A, 2 Pole, 277/480V AC, 25kA at 120V AC
Protect your electrical system with the Square D E FRAME Series Miniature Circuit Breaker, designed for use with NF Panelboards. This 15A, 2-pole breaker is rated for 277/480V AC and provides 25kA at 120V AC. Its compact size and bolt-on mounting style make it ideal for a wide range of applications, including commercial and industrial settings. The breaker features a toggle actuator and lug terminals, ensuring easy installation and reliable operation. With a maximum operating temperature of 104°F, this circuit breaker provides reliable protection in demanding environments, making it a trusted choice for electrical system protection.
Top product features:
- Breaks overcurrent faults at 25kA at 120V AC
- Protects against overloads and short circuits with a 15A rating
- Has a toggle actuator for easy manual reset
Top product applications:
- Commercial Buildings
- Industrial Facilities
- Data Centers
Miniature Circuit Breaker, Amps 15 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Single, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 1.96 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 2.50
- Package Height: 6.30
- Package Weight: 2.20
Product info last updated on January 13, 2026 1:23pm UTC
Category: Circuit Protection
