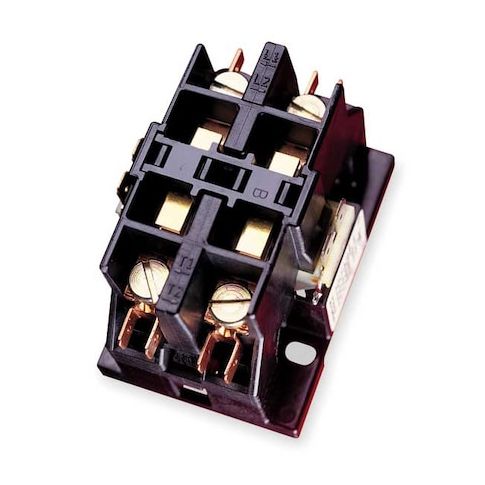

Definite Purpose Magnetic Contactor, 120V AC, 2 P, Non-Reversing, 1 Phase, Box Lug & Quick Connect MPN:8910DP42V02
Free Shipping
In Stock
The SQUARE D 8910DP42V02 Definite Purpose Magnetic Contactor is a reliable industrial electrical device designed to control power flow in heavy-duty applications. Suitable for use in HVAC, data processing, and manufacturing sectors, this tool allows industry professionals to manage and automate machinery operations with ease. Its non-reversing action ensures constant current flow direction, while its 120V AC coil voltage rating and 50/60 Hz frequency compatibility make it a versatile solution. Supporting up to 2hp at 120VAC and 5hp at 240VAC, this contactor is perfect for managing power supplies in various industrial settings, ensuring efficient and safe operation.
Top product features:
- Operates as a non-reversing contactor, allowing for constant current flow direction in a circuit.
- Designed to operate with inductive loads up to 40A and resistive loads up to 50A.
- Supports single-phase power supplies, rated for operation with up to 2hp at 120VAC and up to 5hp at 240VAC.
Top product applications:
- HVAC
- Data processing
- Manufacturing
The SQUARE D - 8910DP42V02 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions with a constant current flow direction.
- Coil Voltage: Rated for operation within the specified voltage range of 120V AC.
- Control Circuit Voltage: Requires specific voltage for operation which can vary based on frequency and geographical region (120 V AC 60 Hz
- 110 V AC 50 Hz).
- Electrical Connection: Can be attached to an electrical circuit using box lugs or quick connect terminals.
- Frequency: Specified for use with power systems operating at frequencies of either 50 Hz or 60 Hz. Compatibility outside these ranges is not guaranteed.
- Full Load Amps-Inductive & Resistive: Designed to operate with inductive loads up to a certain limit (40 A Inductive
- 50 A Resistive) and resistive loads up to another limit (50A Resistive). Overheating or damage may occur if these limits are exceeded.
- Horsepower @ Single Phase - Rated for operation with single-phase power supplies, supporting specific horsepower levels depending on the supply voltage: supports up to 2hp at a supply voltage of 120VAC and up to 5hp at a supply voltage of 240VAC.
- Pole Contact Composition: Arrangement includes two Normally Open contacts determining how circuits are controlled during operation.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 2.60
- Package Height: 3.30
- Package Weight: 0.55
