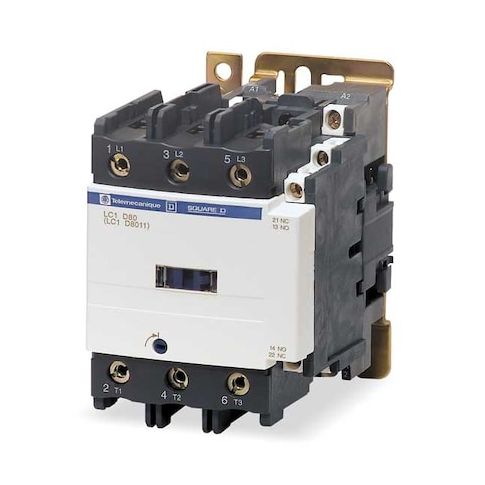

IEC Magnetic Contactor, 1NC/1NO, 480V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D80T6
Free Shipping
In Stock
The SQUARE D IEC Magnetic Contactor is a reliable and efficient solution for controlling motor control and resistive load circuits in industrial settings. Its 3-pole, non-reversing design ensures seamless operation, while its 480V AC coil and screw clamp terminals provide secure connections. Suitable for DIN rail or plate mounting, this device is ideal for applications such as HVAC systems, conveyor belts, and pumps. With its high HP rating, impulse withstand, and durability, it can handle demanding tasks with ease. Its compact design and low weight make it easy to install and maintain, ensuring minimal downtime and maximum productivity.
Top product features:
- 1 Normally open and 1 normally closed auxiliary contact pair provides flexible control options for motor control and resistive load circuits.
- It features a 480 V AC coil for reliable electrical operation within specified parameters.
- Screw clamp terminals enable secure and efficient wiring connections for safe and reliable operation.
Top product applications:
- Industrial Automation Control Systems
- Motor Control Circuits for Industrial Machinery
- Resistive Load Control Panels
The SQUARE D IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for controlling motor control and resistive load circuits within specified parameters. It features 1 normally open and 1 normally closed auxiliary contact pair (2 auxiliary contacts total) and a 480 V AC coil. The device is equipped with screw clamp terminals suitable for specified wiring connections, and has an IP20 rated enclosure (if applicable) or is intended for indoor use in accordance with IP20 standards. It is compatible with DIN rail or plate mounting as specified
- part of the TeSys Deca series (product classification only).
- Poles/Main Contacts: 3 main contacts normally open
- Auxiliary contacts: 2 total (1NO/1NC)
- - Coil Voltage: 480 V AC
- - Electrical connection: Equipped with screw clamp terminals suitable for specified wiring connections
- - Mounting: Compatible with DIN rail or plate mounting as specified
- - Enclosure/IP rating: Conforms to IP20 ingress protection rating when installed properly
- if applicable, specify accordingly
- - Series: TeSys Deca product line (classification only)
- - Phase/Frequency: Three phase
- 60 Hz
- - Rated voltage: Up to 690 V AC and 300 V DC per specifications
- - HP rating (3 Phase @ 480V): Up to 60 hp at 480V three-phase, under standard conditions
- - Rated breaking/making capacity: 1100 A @ 440V
- 1100 A @ 440V (Power Circuit) making
- - Impulse withstand: 8 kV
- - Inrush/Hold VA: 220 VA start
- 22 VA hold
- - Mechanical/Electrical durability: 10 Mcycles
- 1,500,000 and 800,000 cycles (electrical)
- - Operating times: 20–35 ms (Closing)
- 6–20 ms (Opening)
- - Dimensions/Weight: Depth 5.12 in
- Height 5 in
- Width 3.34 in
- Net weight 1.59 kg
- - Other: Non-reversing
- Non-Reversing (Reversing: No)
- Shock/Vibration: 10 G (Closed)
- 8 G (Open)
- 3 G (Closed)
- 2 G (Open)
Additional Information
- Country of Origin: CZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 3.80
- Package Height: 5.50
- Package Weight: 3.40
