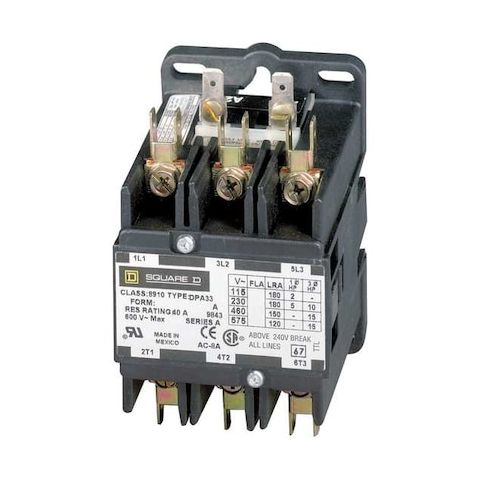

Definite Purpose Magnetic Contactor, 480V AC, 3 P, Non-Reversing, 3 Phase, Quick Connect MPN:8910DPA63V06
Free Shipping
In Stock
The SQUARE D 8910DPA63V06 Definite Purpose Magnetic Contactor is a powerful tool for controlling power flow in heavy-duty applications. Ideal for managing and automating machinery operations in sectors such as HVAC, data processing, and manufacturing, this contactor ensures a constant current flow direction and can handle high-amperage loads. With a coil voltage of 480V AC and a frequency of 50/60 Hz, it's perfect for use in three-phase systems. Its ability to switch multiple circuits simultaneously and control motors up to 30 hp makes it a reliable choice for demanding applications.
Top product features:
- Operates within a wide range of frequency, specified for 50/60 Hz electrical cycles
- Maintains a constant current flow direction, suitable for non-reversing applications
- Switches multiple circuits simultaneously, enabled by three poles
Top product applications:
- HVAC
- Data processing
- Manufacturing
The SQUARE D - 8910DPA63V06 is a Definite Purpose Magnetic Contactor, an industrial electrical device that controls the flow of power in heavy-duty applications. This tool operates by responding to electrical impulses, either allowing or interrupting power supply based on need. It's commonly used for managing and automating machinery operations across various sectors such as HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor maintains a constant current flow direction.
- Coil Voltage: Rated for operation at a coil voltage of 480V AC.
- Depth: Extends 3.67 inches into the mounting surface or enclosure.
- Enclosure Type: Open – No additional protective casing is included with this model.
- Frequency: Specified to operate within electrical cycles at a frequency of 50/60 Hz.
- Amps-Inductive & Resistive Load Capacity: Has been tested with up to 60 A for inductive loads (like motors) and up to 75 A for resistive loads (like heaters).
- Horsepower Control Range: Tested with motors ranging from single-phase power supplies at lower voltages (5 hp @120V
- 10 hp @240V) through three-phase systems at higher voltages (30 hp @480V
- 30 hp @575V).
- Poles Count: Contains three poles enabling it to switch multiple circuits simultaneously
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 2.70
- Package Height: 4.40
- Package Weight: 1.62
