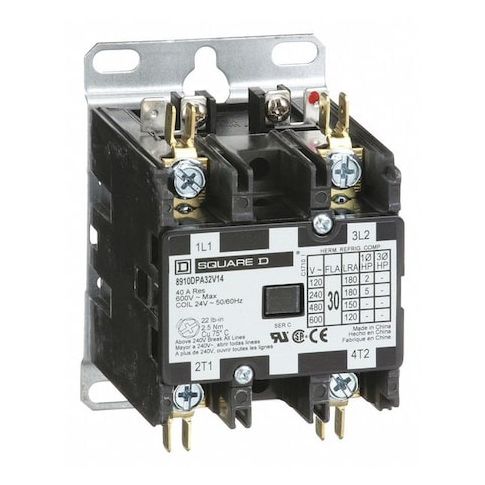

Definite Purpose Magnetic Contactor, 24V AC, 2 P, Non-Reversing, 1 Phase MPN:8910DPA32V14
Free Shipping
In Stock
The SQUARE D 8910DPA32V14 Definite Purpose Magnetic Contactor is a reliable and efficient industrial electrical device designed for heavy-duty applications. It controls power flow by responding to electrical impulses, allowing or interrupting power supply as needed. Ideal for managing and automating machinery operations in various sectors such as HVAC, data processing, and manufacturing. With its non-reversing action, 24V AC coil voltage, and quick connect terminals, this contactor ensures seamless power control and efficient operation. Rated for up to 2 hp at single-phase, 120V AC and up to 5 hp at single-phase, 240V AC, it's perfect for applications that require precise power management.
Top product features:
- Operates by responding to electrical impulses to control the flow of power in heavy-duty applications.
- Has a non-reversing action, ensuring the current flow direction remains constant during operation.
- Rated for operation within 50/60 Hz frequency ranges and capable of handling up to 30A for inductive loads and 40A for resistive loads.
Top product applications:
- HVAC
- Data processing
- Manufacturing
The SQUARE D - 8910DPA32V14 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. This tool operates by responding to electrical impulses, allowing or interrupting power supply based on the need. It's primarily used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – this means that the current flow direction remains constant during operation.
- Coil Voltage: The coil voltage requirement is 24V AC which effectively engages or disengages its electrical circuit.
- Electrical Connection: The contactor uses Binder head
- Quick connect terminals for attaching to an electrical circuit.
- Frequency: Rated for operation within the specified 50/60 Hz frequency ranges.
- Full Load Amps-Inductive & Resistive: Has a rated capacity for handling up to a maximum current of 30A for inductive loads and 40A for resistive loads under normal operating conditions.
- Horsepower @ Single Phase - 120V AC & Horsepower @ Single Phase -240V AC : Rated for controlling power output up to a maximum of 2 hp at single-phase,120V AC and up to 5hp at single-phase, 240V AC under normal operating conditions.
- Pole Contact Composition: Contains two Normally Open contacts determining how electrical circuits are controlled during operation
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 3.10
- Package Height: 3.70
- Package Weight: 0.94
