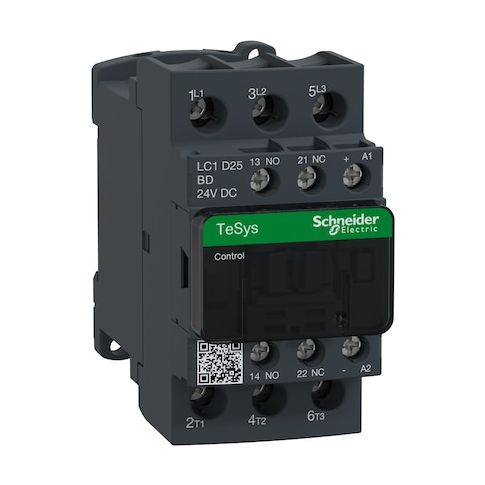

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D25BD

• The SQUARE D IEC Magnetic Contactor is a 3-pole, non-reversing, IEC-style switching device that uses a 24 V DC coil to control power circuits. It is rated for operation with motor control and resistive loads within specified parameters

• it includes auxiliary contacts as specified. Features include screw clamp terminals, DIN rail or plate mounting options
• it complies with relevant standards for enclosure specifications.

  Key features

• - Coil voltage: 24 V DC
• - Poles / main contacts: 3 poles
• 3 normally open main contacts
• - Auxiliary contacts: 2 total (1NO/1NC)
• - Action: Non-Reversing
• - Embedded surge suppressor: Yes
• - Electrical connection: Screw Clamp Terminals
• - Mounting: DIN Rail, Plate
• - Enclosure: No Enclosure
• IP20
• - Series: TeSys Deca
• - Rated voltage: 690 V AC, 300 V DC
• Frequency: 50/60 Hz
• - Rated for maximum current ratings of 40 A resistive and 25 A inductive at specified voltages under normal operating conditions.
• - Weight: 0.53 kg
• - Dimensions: Width 1.77 in
• Height 3.35 in
• Depth 3.98 in
• - Designed to operate at a maximum switching frequency of up to 3600 cycles per hour under standard test conditions.
• - Typical operating times within the specified ranges when operated under recommended conditions
• actual performance may vary based on application specifics.
• - Mechanical durability: 30 Mcycles
