Definite Purpose Magnetic Contactor, 208V-240V AC, 3 P, Non-Reversing, 3 Phase MPN:8910DPA53V09
Free Shipping
In Stock

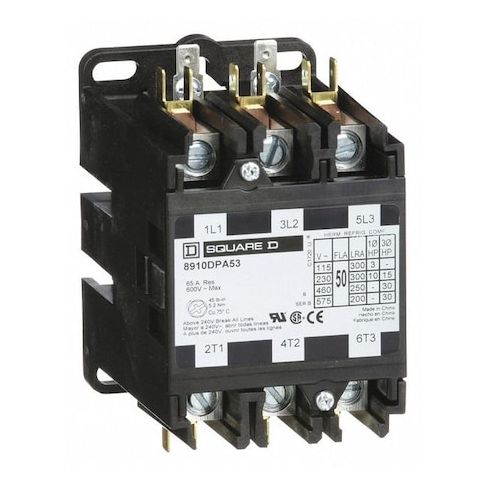

The SQUARE D 8910DPA53V09 Definite Purpose Magnetic Contactor is a heavy-duty electrical device designed for controlling power flow in industrial applications. Suitable for use in HVAC, data processing, and manufacturing, this non-reversing contactor maintains a constant current flow direction and operates within a 208-240V AC voltage range. With a depth of 3.67 inches and a frequency of 50/60 Hz, it can handle currents up to 50A for inductive loads and 65A for resistive loads. Ideal for controlling motors up to 600V AC, this contactor offers versatile control requirements and is a reliable solution for managing machinery operations.
Top product features:
- The contactor functions as non-reversing, maintaining a constant current flow direction.
- It is rated for operation within the specified voltage ranges of 208-240V AC.
- It has three normally open main contacts that remain open when not powered for versatile control requirements.
Top product applications:
- HVAC management
- Data processing automation
- Manufacturing machinery operations
The SQUARE D - 8910DPA53V09 is a Definite Purpose Magnetic Contactor, an industrial electrical device that controls the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: The contactor functions as non-reversing which means it maintains a constant current flow direction.
- Coil Voltage: Rated for operation within the specified voltage ranges of 208-240V AC.
- Depth: With a depth measurement of 3.67 inches, it indicates how far it extends into the mounting surface or enclosure.
- Frequency: Specified to operate at an electrical cycle frequency rate of 50/60 Hz.
- Full Load Amps-Inductive & Resistive: Rated for handling currents up to specified limits: 50 A for inductive loads, and up to 65 A for resistive loads. Continuous operation beyond these ratings is not recommended.
- Horsepower Control Range: Suitable for control applications involving motors with horsepower specifications that vary according to phase and voltage - from single-phase at rated conditions of 120V (3 hp), extending up till three-phase conditions rated as high as up to but not exceeding under normal operating conditions, 600V AC(50hp).
- Number of Poles & Normally Open Main Contacts: Equipped with three poles indicating its ability to switch multiple circuits simultaneously
- also has three normally open main contacts that remain open when not powered for versatile control requirements.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 2.70
- Package Height: 4.30
- Package Weight: 1.64
