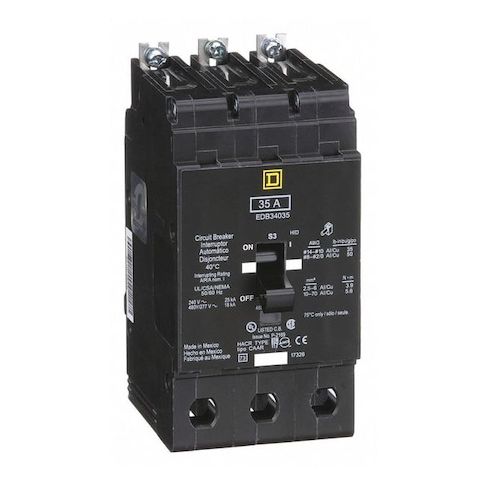

Miniature Circuit Breaker, E FRAME Series, 35A, 3 Pole, 277/480V AC, 25kA at 120V AC MPN:EDB34035
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2715763
Miniature Circuit Breaker, E FRAME Series, 35A, 3 Pole, 277/480V AC, 25kA at 120V AC
Protect your electrical panel with the Square D E FRAME Series Miniature Circuit Breaker, designed for use in NF Panelboards. This 3-pole, 35A breaker offers 25kA at 120V AC and 18kA at 277/480V AC, ensuring reliable protection against overloads and short circuits. Suitable for applications requiring high ampacity, such as commercial and industrial settings, this breaker features a toggle actuator and bolt-on mounting style for easy installation. Its compact size and robust design make it an ideal choice for spaces with limited clearance, providing peace of mind for electrical system operators and owners.
Top product features:
- 35A current rating provides sufficient power for a variety of applications
- Three-pole design allows for simultaneous control of three separate circuits
- 25kA interrupting capacity at 120V AC ensures reliable protection against overcurrent conditions
Top product applications:
- Panelboards
- Load Centers
- Electrical Distribution Boxes
Miniature Circuit Breaker, Amps 35 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 125V DC, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Three, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 2.94 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.80
- Package Width: 6.30
- Package Height: 4.70
- Package Weight: 3.50
Product info last updated on January 13, 2026 1:52pm UTC
Category: Circuit Protection
