Terminal Block, Solderless Box Lug, 1 Pole, 40 A, 600 V AC/DC, 10 AWG, Screw Termination, Natural MPN:9080GK6
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2647197

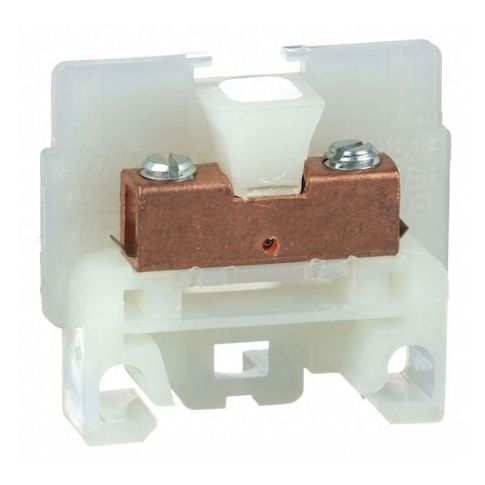

Terminal Block, Solderless Box Lug, 1 Pole, 40 A, 600 V AC/DC, 10 AWG, Screw Termination, Natural
This terminal block is a reliable and efficient solution for connecting and protecting electrical circuits. Its 40A rating and 600V AC/DC voltage range make it suitable for a wide range of applications, from industrial control systems to residential electrical panels. The screw termination and natural housing color provide a secure and visually appealing connection. With a compact design and CE, CSA, and UL approval, this terminal block is a great choice for electrical engineers and contractors seeking a high-quality, easy-to-use solution for their projects. It's ideal for use in surface-mounted applications, including control panels and distribution boards.
Top product features:
- Solderless design allows for easy installation and removal of wires
- Screw termination enables secure and reliable connections
- Two-tier design provides increased wire capacity and organization
Top product applications:
- Electrical Panel Installation
- Industrial Automation Systems
- High-Current Power Distribution
Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 40 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 10 AWG, Housing Color Natural, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 3 1/32 in, Overall Depth 0.35 in, Overall Length 1.39 in, Overall Width 1.4 in, Standards CE, CSA Approved, RoHS Compliant, UL Component Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.40
- Package Width: 1.30
- Package Height: 0.80
- Package Weight: 0.02
Product info last updated on January 13, 2026 1:27pm UTC
Category: Electrical Connectors
