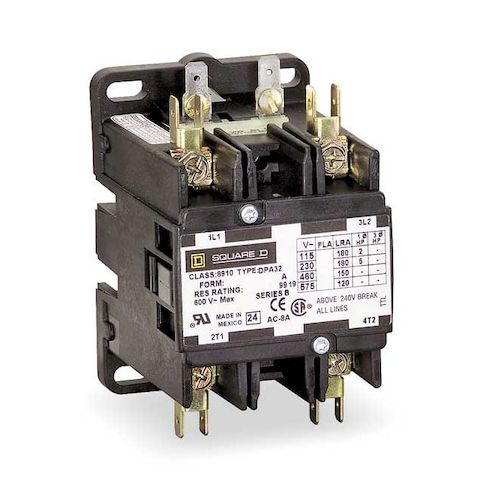

Definite Purpose Magnetic Contactor, 208V-240V AC, 2 P, Non-Reversing, 1 Phase MPN:8910DPA52V09
Free Shipping
In Stock
The SQUARE D 8910DPA52V09 Definite Purpose Magnetic Contactor is a reliable and efficient tool for managing and automating machinery operations in various industries, including HVAC, data processing, and manufacturing. This non-reversing contactor allows for precise control of power supply, ensuring smooth and safe operation of equipment. Its compatibility with 208-240V AC and 50/60 Hz frequencies makes it a versatile solution for controlling motors with horsepower ranging from 3 to 50. By using this contactor, users can improve productivity, reduce energy consumption, and extend the lifespan of their equipment. Its rugged design and high amp capacity make it an ideal choice for heavy-duty applications.
Top product features:
- Operates in a non-reversing mode where the current flow direction remains constant.
- Accommodates maximum currents up to 50 A for inductive loads and up to 65 A for resistive loads.
- Suitable for controlling motors with horsepower that falls within the specified range: single-phase power supply from three hp at both 120 volts, extending up to three-phase power supply of fifty hp at six hundred volts alternating current.
Top product applications:
- HVAC systems
- data processing
- manufacturing
The SQUARE D - 8910DPA52V09 is a Definite Purpose Magnetic Contactor, an industrial electrical device that controls the flow of power in heavy-duty applications. It operates by responding to electrical impulses, either allowing or interrupting power supply based on need. This tool is commonly used for managing and automating machinery operations across various sectors such as HVAC, data processing, and manufacturing.
- Action: The contactor functions in a non-reversing mode where the current flow direction remains constant.
- Coil Voltage: Rated for operation within the specified voltage ranges of 208-240V AC.
- Control Circuit Voltage: Requires specific voltage (208 to 240 V AC at 60 Hz
- 220 V AC at 50 Hz) for operation.
- Electrical Connection: Can be attached to an electrical circuit via quick connect terminals or box lugs.
- Frequency Compatibility: Compatible with electrical cycles per second measured at a frequency of 50/60 Hz.
- Amp Capacity: Specified to accommodate maximum currents up to 50 A for inductive loads and up to 65 A for resistive loads. Exceeding these limits may result in overheating or damage.
- Horsepower Control Range: Suitable for controlling motors with horsepower that falls within the specified range: single-phase power supply from three hp at both 120 volts, extending up to three-phase power supply of fifty hp at six hundred volts alternating current. Operation outside this range is not recommended.
- Pole Contact Composition: Comprises two Normally Open (NO) contacts which determine how electrical circuits are controlled during operation
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 2.70
- Package Height: 3.80
- Package Weight: 1.40
