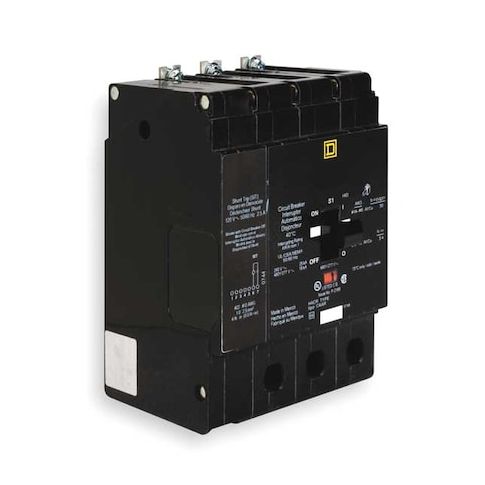

Miniature Circuit Breaker, E FRAME Series, 80A, 3 Pole, 277/480V AC, 25kA at 120V AC MPN:EDB34080SA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2552785
Miniature Circuit Breaker, E FRAME Series, 80A, 3 Pole, 277/480V AC, 25kA at 120V AC
This miniature circuit breaker is designed for use in Square D NF panelboards, providing reliable and safe electrical distribution. With a 3-pole, 80A rating and compatibility with 277/480V AC systems, it's ideal for commercial and industrial applications. The shunt trip feature allows for remote control and easy installation. The breaker's compact size and bolt-on mounting style make it easy to integrate into existing systems. Its 25kA interrupting capacity at 120V AC and 18kA at 277/480V AC ensure reliable protection against overcurrent conditions. Suitable for a wide range of applications, including data centers, hospitals, and office buildings.
Top product features:
- Trip circuit when current exceeds 80A
- Protects against overcurrent conditions in 3-pole applications
- Ratings of 277/480V AC allow for use in a variety of AC power systems
Top product applications:
- Industrial control panels
- Commercial building electrical systems
- Data center electrical infrastructure
Miniature Circuit Breaker, Amps 80 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Shunt Trip, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Three, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 3.92 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 4.30
- Package Height: 4.90
- Package Weight: 3.87
Product info last updated on January 13, 2026 11:53am UTC
Category: Circuit Protection
