Definite Purpose Magnetic Contactor, 120V AC, 3 P, Non-Reversing, 3 Phase, Box Lug & Quick Connect MPN:8910DPA53V02
Free Shipping
In Stock

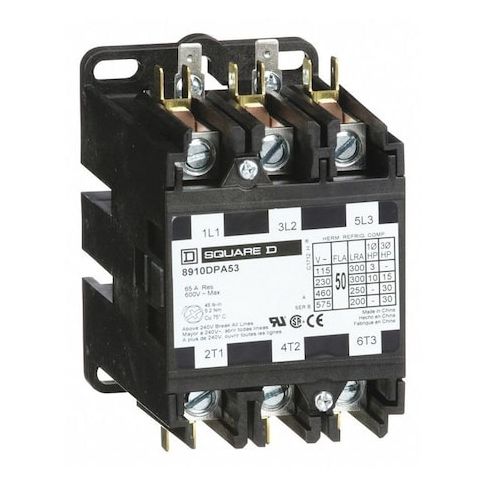

The SQUARE D 8910DPA53V02 Definite Purpose Magnetic Contactor is a heavy-duty electrical device designed for industrial applications. It controls power flow in machinery operations, commonly used in HVAC, data processing, and manufacturing sectors. This non-reversing contactor operates at 120V AC and accommodates up to 50A inductive and 65A resistive currents. It can be connected using box lugs or quick connect terminals and is compatible with 50/60 Hz frequencies. With its high amp capacity and horsepower control range, this contactor is ideal for managing and automating machinery operations in various industries, ensuring efficient and reliable power supply.
Top product features:
- Operates with a constant current flow direction, suitable for applications that require non-reversing control.
- Rated for operation at a coil voltage of 120V AC, allowing for reliable power supply management.
- Accommodates up to maximum currents of 50A inductive and 65A resistive, providing flexibility in handling varying load conditions.
Top product applications:
- HVAC
- Data Processing
- Manufacturing
The SQUARE D - 8910DPA53V02 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions with a constant current flow direction.
- Coil Voltage: Rated for operation at a coil voltage of 120V AC.
- Control Circuit Voltage: Specified for operation within the range of voltages including 120 V AC 60 Hz
- 110 V AC 50 Hz.
- Electrical Connection: Can be attached to an electrical circuit using box lugs or quick connect terminals.
- Frequency Compatibility: Compatible with electrical cycles per second measured at frequencies of either 50/60 Hz
- Amp Capacity: Rated to accommodate up to maximum currents of both Full Load Amps-Inductive (50 A) and Full Load Amps-Resistive (65 A).
- Horsepower Control Range: Horsepower control varies based on phase and voltage levels, ranging from HP @ Single Phase - 120V AC (3 hp) up to HP @ Three Phase -600V AC (50 hp).
- Pole Contact Composition: Contains three Normally Open contacts which determine how circuits are controlled during operation.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.80
- Package Width: 3.80
- Package Height: 4.50
- Package Weight: 1.60
