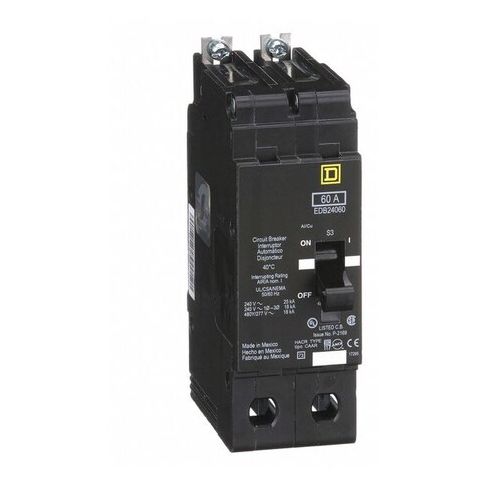

Miniature Circuit Breaker, E FRAME Series, 60A, 2 Pole, 277/480V AC, 25kA at 120V AC MPN:EDB24060
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2445484
Miniature Circuit Breaker, E FRAME Series, 60A, 2 Pole, 277/480V AC, 25kA at 120V AC
Protect your electrical systems with the Square D E FRAME Series 60A Miniature Circuit Breaker. Designed for use with Square D NF Panelboards, this 2-pole breaker provides reliable protection against overloads and short circuits in single-phase applications. Its 277/480V AC rating and 25kA at 120V AC make it ideal for commercial and industrial settings. With a maximum operating temperature of 104°F, this breaker ensures safe and efficient operation in a variety of environments. Its compact size and bolt-on mounting style make it easy to integrate into new or existing systems, providing a reliable and cost-effective solution for electrical protection.
Top product features:
- Two pole design for separating circuit protection between two phases
- 60A capacity for handling high current loads
- 25kA interrupting rating at 120V AC for reliable overload protection
Top product applications:
- Commercial Building Electrical Systems
- Industrial Electrical Distribution Systems
- Data Center Electrical Power Distribution Systems
Miniature Circuit Breaker, Amps 60 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating 125V DC, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Single, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 3.92 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 6.30
- Package Height: 4.20
- Package Weight: 2.40
Product info last updated on January 13, 2026 12:03pm UTC
Category: Circuit Protection
