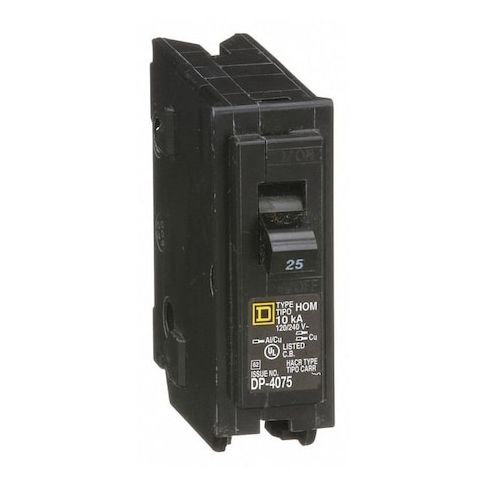

Miniature Circuit Breaker, HOMELINE Series, 25A, 1 Pole, 120V AC, 10kA at 120V AC MPN:HOM125
Free Shipping
In Stock
Protect your electrical system with the Square D HOMELINE Series Miniature Circuit Breaker. Engineered for fast installation and superior circuit protection, this 25A, 1 pole breaker is designed for use in Homeline load centers, providing standard circuit protection and HACR rating. With a 10kA breaking capacity and plug-in mounting, it's easy to install and maintain. Suitable for a variety of applications, including residential and commercial use, this circuit breaker offers reliable protection against overloads and short circuits, ensuring a safe and efficient electrical system. Its compact design and UL Listing make it a reliable choice for any electrical installation.
Top product features:
- Fast installation
- Provides standard circuit protection and is HACR rated
- Accepts 2 wires with a clamp terminal that will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire
Top product applications:
- Residential Electrical Panel Installation
- Commercial Electrical Panel Installation
- Industrial Electrical Panel Installation
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 25A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 3.10
- Package Height: 1.00
- Package Weight: 0.32
