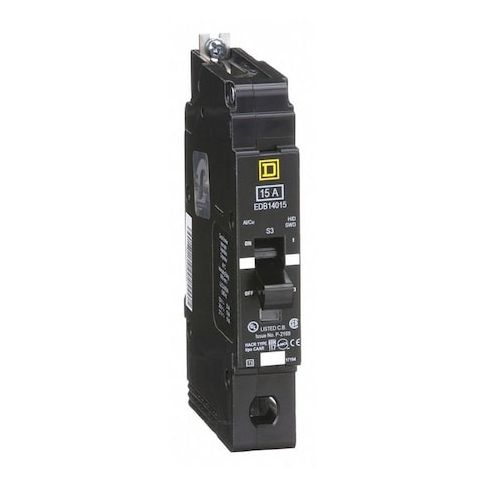

Miniature Circuit Breaker, E FRAME Series, 15A, 1 Pole, 277V AC, 25kA at 120V AC MPN:EDB14015
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2345077
Miniature Circuit Breaker, E FRAME Series, 15A, 1 Pole, 277V AC, 25kA at 120V AC
This miniature circuit breaker from Square D is a reliable and efficient solution for protecting your electrical systems. With a 15A rating and 277V AC voltage, it's ideal for use in commercial and industrial settings, particularly in Square D NF panelboards. The E FRAME Series breaker offers a maximum interrupting capacity of 25kA at 120V AC and a maximum operating temperature of 104°F. Its compact design and bolt-on mounting style make it easy to install and integrate into your existing electrical infrastructure, providing peace of mind and ensuring safe and reliable operation. Suitable for a variety of applications, including lighting, heating, and power distribution.
Top product features:
- 15A amp rating allows for safe and reliable operation of connected loads
- 277V AC voltage rating enables compatibility with a wide range of electrical systems
- 25kA at 120V AC interrupting rating provides high-level protection against electrical surges and faults
Top product applications:
- Residential electrical panelboards
- Commercial electrical panelboards
- Industrial electrical panelboards
Miniature Circuit Breaker, Amps 15 A, AC Voltage Rating 277V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Single, Series EDB, Max. AIR Rating 18kA at 120/240V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 0.98 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.10
- Package Width: 4.40
- Package Height: 1.10
- Package Weight: 1.05
Product info last updated on January 13, 2026 12:29pm UTC
Category: Circuit Protection
