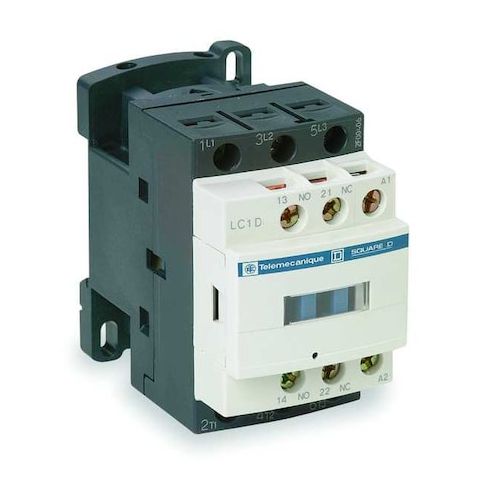

IEC Magnetic Contactor, 1NC/1NO, 480V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D12T7

• The Square D IEC Magnetic Contactor is a 3-pole, non-reversing, coil-operated switching device classified as an IEC Magnetic Contactor. It uses a 480 V AC coil and includes 1 normally open and 1 normally closed auxiliary contact (1NO/1NC). Featuring screw clamp terminals, it is designed for motor control and resistive loads, operates within the specified frequency range

• does not include a built-in suppressor module or enclosure.

  - Poles and main contacts: 3 poles

• 3 normally open main contacts
• - Auxiliary contacts: 2 total (1NC/1NO)
• - Coil voltage: 480 V AC
• - Action: Non-Reversing
• - Voltage/current rating: Max 690 V AC
• rated for making and breaking capacities up to 250 A at 440 V in accordance with applicable standards.
• - Frequency: 50/60 Hz
• - Connection and mounting: Screw Clamp terminals
• Mounting on DIN Rail and Plate
• Mounts On Plate, Rail
• - Enclosure/IP rating: No Enclosure
• IP20
• - Dimensions and weight: Depth 3.38 in
• Height 3.03 in
• Width 1.77 in
• Net weight 0.325 kg
• - Durability: Mechanical durability approximately 15 million cycles
• Electrical durability ratings are based on standard testing conditions.
• - Additional features: Embedded Surge Suppressor No
• includes protective cover
• equipped with auxiliary contacts as specified.
• - Other ratings and standards: Impulse withstand 6 kV
• Insulation resistance > 10 MΩ (Signalling Circuit)
• Overvoltage CAT III
• Standards include EN 60947-4-1, EN 60947-5-1, UL 508, UL Listed, CSA, CSA C22.2 No 14, IEC 60947-4-1, IEC 60947-5-1, and others
• Series TeSys Deca
• Phase Three
• Reversing: No
