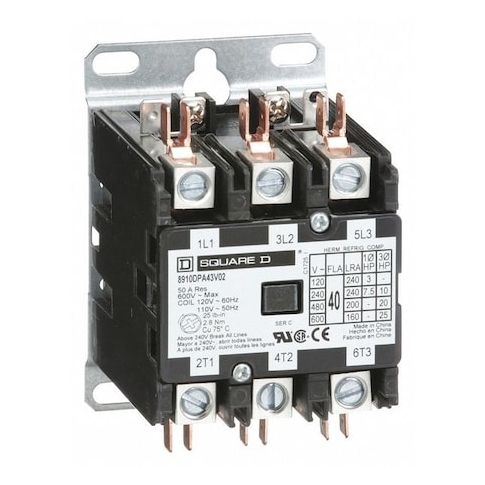

Definite Purpose Magnetic Contactor, 120V AC, 3 P, Non-Reversing, 3 Phase, Box Lug & Quick Connect MPN:8910DPA43V02

• The SQUARE D - 8910DPA43V02 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.




  • Action: Non-Reversing – The contactor functions with a constant current flow direction.
  • Coil Voltage: Rated for operation within the specified voltage range of 120V AC.
  • Depth: Measures 3.12 inches from front to back for compact installation.
  • Frequency: Rated for operation within the specified frequency ranges of 50/60 Hz.
  • Full Load Amps-Inductive & Resistive: Specified to manage currents up to 40 A (inductive) and 50 A (resistive).
  • Horsepower Ratings: Compatible with motor control within the given horsepower ratings, dependent on single-phase or three-phase power supplies between the ranges of 120V AC to 600V AC.
  • Locked Rotor Load Capacity: Designed for handling peak current under conditions where motor start-up rotation is inhibited
  • performance may vary based on voltage levels
  • Poles Number: Equipped with three poles enabling simultaneous switching of multiple circuits
  • Reversing Capability: Non-reversing feature facilitates one-way motor operation only
