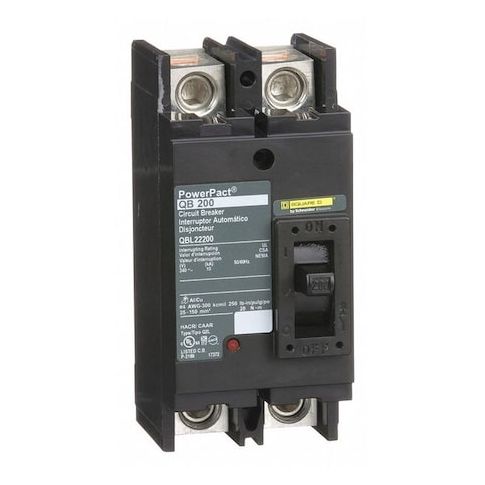

Molded Case Circuit Breaker, POWERPACT Q Series, 200A, 2 Pole, 240V AC, 10kA at 240V AC MPN:QBL22200
Free Shipping
In Stock
Protect your 240VAC systems with the PowerPact Q Series Molded Case Circuit Breaker, a reliable and efficient solution for overcurrent protection and switching. Suitable for use in a variety of applications, including industrial and commercial settings, this circuit breaker provides thermal magnetic trip protection and an interrupting rating of 10kA at 240VAC. With its 200A rating and 2-pole design, it's perfect for high-demand systems. The PowerPact Q Series also features a manual trip button and meets strict safety standards, including UL, CSA, and NOM certifications, making it a trusted choice for professionals and contractors alike.
Top product features:
- Thermal magnetic trip protection provides reliable overcurrent protection.
- Integral push-to-trip button allows manual tripping of the circuit breaker.
- Lugs on both the line and load sides enable easy connection and disconnection.
Top product applications:
- Overcurrent protection and switching on 240VAC systems
- Overcurrent protection and switching on 240VAC systems with 2 and 3-pole unit mount and I-Line constructions
- Thermal magnetic trip protection for 240VAC systems
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 200A, 2 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.70
- Package Width: 6.10
- Package Height: 4.70
- Package Weight: 3.35
