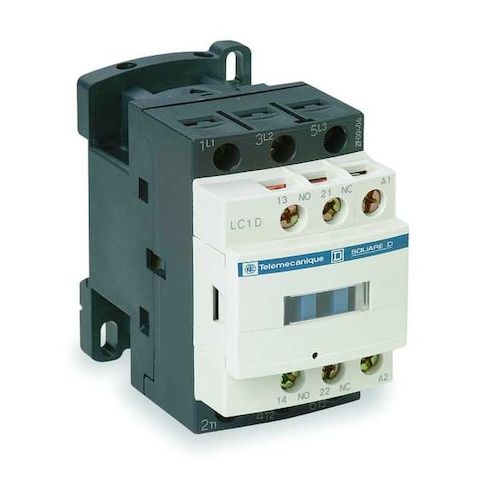

IEC Magnetic Contactor, 1NC/1NO, 480V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D25T7
Free Shipping
In Stock
The SQUARE D - IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive load applications. Compatible with screw clamp terminals, it ensures seamless connectivity and durability. Withstanding temperatures up to 140°F and tested under rigorous conditions, this contactor provides long-lasting performance. Its non-reversing design and 1NO/1NC auxiliary contact configuration make it ideal for use in industrial settings, including manufacturing, processing, and power distribution. Suitable for DIN Rail or Plate mounting, this contactor is a versatile and dependable choice for various applications, including motor control, lighting systems, and more.
Top product features:
- Operates with a coil voltage of 480V AC
- Features an auxiliary contact configuration of 1NO/1NC
- Has an average impedance of 2 mOhm at Ith 40 A 50 Hz for the power circuit
Top product applications:
- Motor control applications
- Resistive load applications
- General purpose control applications
The SQUARE D - IEC Magnetic Contactor is a non-reversing, three-pole contactor intended for use in motor control and resistive load applications. It operates with a coil voltage of 480V AC and features an auxiliary contact configuration of 1NO/1NC. The contactor has an average impedance of 2 mOhm at Ith 40 A 50 Hz for the power circuit and has been tested under conditions similar to IACS E10 exposure to damp heat and IEC 60947-1 Annex Q category D exposure to damp heat.
Key Features:
- - Compatible with screw clamp terminals for both control circuits (flexible/solid without cable end) and power circuits (flexible/solid with or without cable end).
- - Electrical durability tests have shown results ranging from 1.4 Mcycles (40 A, AC-1, Less than 440 V) up to approximately 1.65 Mcycles (25 A, AC-3e, Less than 440 V).
- - Operating temperature should not exceed140 Degrees F.
- - Includes a protective cover.
- - Insulation voltage has been tested up until Power circuit:690 V as per the guidelines of the relevant IEC standards
- Signalling circuit:690V as per the guidelines of the relevant IEC standards.
- - Mechanical durability tests have shown results reaching approximately15 Mcycles.
- - Mounting style supports DIN Rail or Plate mounting options.
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 4.80
- Package Height: 2.30
- Package Weight: 0.90
