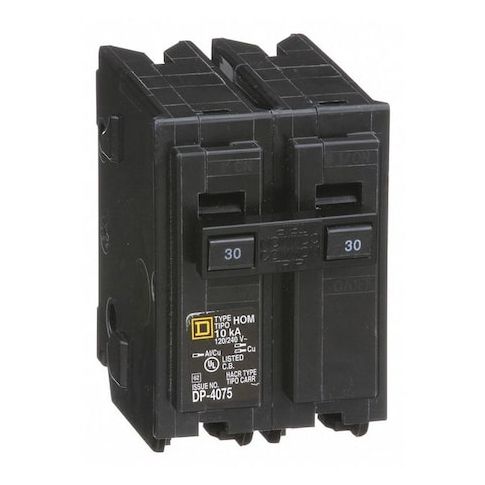

Miniature Circuit Breaker, HOMELINE Series, 30A, 2 Pole, 240V AC, 10kA at 240V AC MPN:HOM230
Free Shipping
In Stock
Protect your electrical system with the Homeline miniature circuit breaker from Square D. This 30A, 2-pole circuit breaker provides fast installation and superior circuit protection, making it ideal for residential and commercial applications. Plug it into a Homeline load center for seamless integration. With a 10kA breaking capacity, this circuit breaker offers reliable protection against power surges and overloads. Its compact design and clamp terminal connection make it easy to install and maintain. UL Listed and HACR rated, this circuit breaker is perfect for new installations or upgrades, ensuring a safe and efficient electrical system.
Top product features:
- Fast installation capability due to engineered design
- Provides standard circuit protection
- 10kA breaking capacity
Top product applications:
- Residential electrical panel upgrades
- Commercial electrical panel installations
- Industrial electrical panel upgrades and maintenance
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 30A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.00
- Package Height: 3.00
- Package Weight: 0.67
