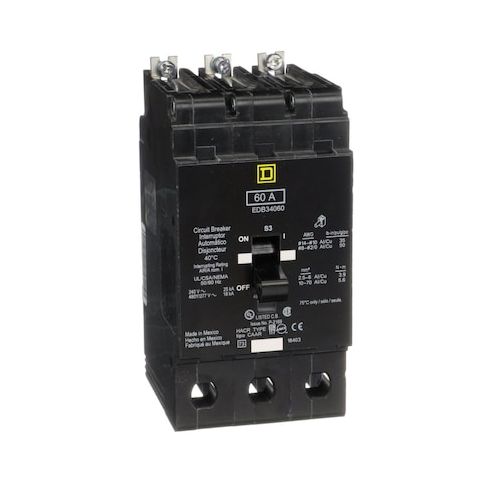

Miniature Circuit Breaker, E FRAME Series, 60A, 3 Pole, 277/480V AC, 25kA at 120V AC MPN:EDB34060
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2109423
Miniature Circuit Breaker, E FRAME Series, 60A, 3 Pole, 277/480V AC, 25kA at 120V AC
The Square D E FRAME Series Miniature Circuit Breaker is a reliable and efficient solution for protecting electrical circuits in commercial and industrial settings. With a 60A rating and 3-pole design, it can handle high-voltage applications up to 277/480V AC. This circuit breaker is ideal for use in Square D NF panelboards and offers a maximum operating temperature of 104°F. Its compact design makes it easy to install and maintain, while its high interrupting capacity of 25kA at 120V AC provides added protection against electrical surges. Suitable for a variety of applications, including commercial buildings and industrial facilities.
Top product features:
- Three Pole design for handling three-phase electrical systems
- Circuit Breaker Actuator Toggle for manual operation
- Terminal Connection Lug for secure and easy connection to electrical circuits
Top product applications:
- Residential electrical panel upgrades
- Commercial electrical panel upgrades
- Industrial electrical panel upgrades
Miniature Circuit Breaker, Amps 60 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 125/250V DC, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Three, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 2.94 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 4.60
- Package Height: 3.60
- Package Weight: 3.15
Product info last updated on January 13, 2026 2:05pm UTC
Category: Circuit Protection
