Definite Purpose Magnetic Contactor, 24V AC, 3 P, Non-Reversing, 3 Phase, Box Lug & Quick Connect MPN:8910DPA43V14
Free Shipping
In Stock

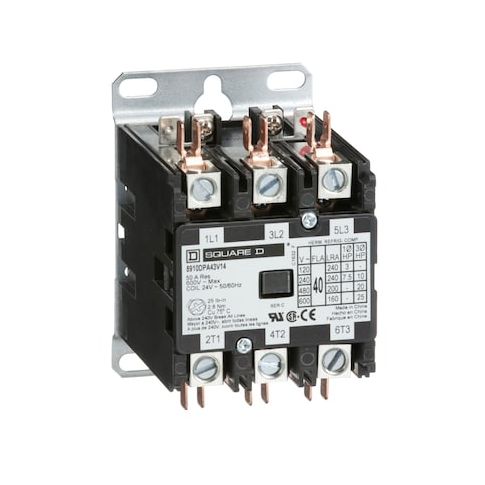

The Square D 8910DPA43V14 Definite Purpose Magnetic Contactor is a heavy-duty electrical device designed to control power flow in industrial applications. It's commonly used for managing and automating machinery operations in sectors like HVAC, data processing, and manufacturing. This non-reversing contactor operates with a constant current flow direction, making it ideal for applications where precise control is necessary. With a 24V AC coil voltage and compatibility with 50/60 Hz, it's a reliable choice for controlling horsepower levels up to 20 hp at three-phase -575V AC. Its durable design ensures efficient operation in demanding environments.
Top product features:
- Non-Reversing operation The contactor functions with a constant current flow direction.
- Coil Voltage: 24V AC Rated for operation at a coil voltage of 24V AC.
- Electrical Connection: Box Lug & Quick Connect Can be attached to an electrical circuit using box lugs or quick connect terminals.
Top product applications:
- HVAC
- data processing
- manufacturing
The SQUARE D - 8910DPA43V14 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions with a constant current flow direction.
- Coil Voltage: Rated for operation at a coil voltage of 24V AC.
- Control Circuit Voltage: Requires a specific voltage of 24 V AC at 50/60 Hz for operation.
- Electrical Connection: Can be attached to an electrical circuit using box lugs or quick connect terminals.
- Full Load Amps-Inductive & Resistive: Designed for handling currents up to 40 A (inductive) and 50 A (resistive).
- Horsepower Ratings: Compatible with controlling horsepower levels within specified ranges, from minimums such as 3 hp @ single phase -120V AC to maximums like 20 hp @ three-phase -575V AC
- Pole Contact Composition: Comprises three Normally Open contacts that determine how circuits are controlled during operation
- Certifications & Standards Compliance: Compliant with UL and CSA standards. Compliance does not guarantee safety, quality or reliability in all scenarios or applications.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 3.20
- Package Height: 3.90
- Package Weight: 1.02
