Terminal Block, Solderless Box Lug, 1 Pole, 180 A, 600 V AC/DC, 1/0 AWG, Screw Termination, Natural MPN:9080GD6
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1900263
Terminal Block, Solderless Box Lug, 1 Pole, 180 A, 600 V AC/DC, 1/0 AWG, Screw Termination, Natural

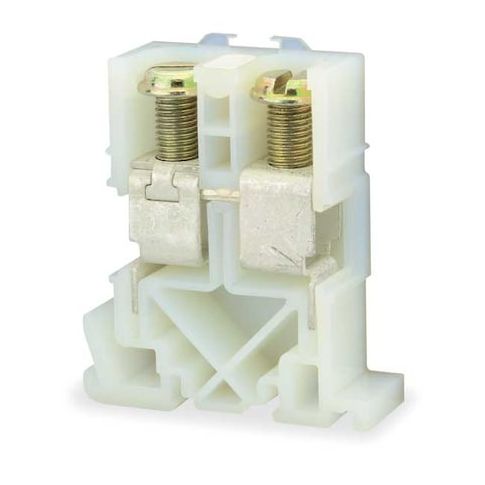

This Solderless Terminal Block from Square D is a reliable and efficient solution for electrical connections. Suitable for use in a variety of applications, including industrial control panels and power distribution systems, it features a 1-pole design with a maximum current rating of 180A and a voltage rating of 600V AC/DC. The terminal block is easy to install, with a screw termination system that allows for secure connections to copper conductors. Its compact design and durable construction make it an ideal choice for applications where space is limited and reliability is paramount.
Top product features:
- Screw termination for easy and secure connection
- Supports up to 180 A of current for reliable power distribution
- DIN Rail mounting for easy installation and space-saving design
Top product applications:
- Industrial Control Panels
- Distribution Boards
- Power Distribution Systems
Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 180 A, For Minimum Wire Size 12 AWG, For Maximum Wire Size 1/0 AWG, Housing Color Natural, Maximum Voltage 600 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 3 1/32 in, Overall Depth 0.7 in, Overall Length 2.71 in, Overall Width 2.12 in, Standards CE, CSA Approved, RoHS Compliant, UL Component Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.20
- Package Height: 0.70
- Package Weight: 0.14
Product info last updated on January 15, 2026 12:05am UTC
Category: Electrical Connectors
