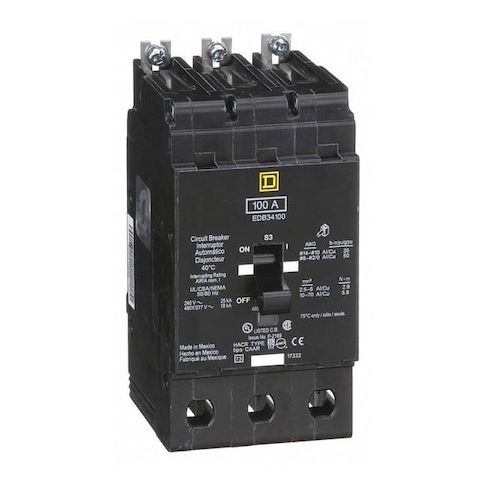

Miniature Circuit Breaker, E FRAME Series, 100A, 3 Pole, 277/480V AC, 25kA at 120V AC MPN:EDB34100
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1896036
Miniature Circuit Breaker, E FRAME Series, 100A, 3 Pole, 277/480V AC, 25kA at 120V AC
Protect your electrical system with the Square D E FRAME Series 100A 3-Pole Miniature Circuit Breaker. Designed for use with Square D NF Panelboards, this circuit breaker provides reliable protection against electrical overloads and short circuits. Its 277/480V AC rating makes it suitable for a wide range of applications, including commercial and industrial settings. With a maximum operating temperature of 104°F, this circuit breaker can withstand harsh environments. Its compact size and bolt-on mounting style make it easy to install and integrate into existing systems, ensuring a safe and efficient electrical distribution system.
Top product features:
- 100A current rating
- Three-pole design
- 25kA short-circuit interrupting rating at 120V AC
Top product applications:
- Commercial Building Lighting Systems
- Industrial Power Distribution Systems
- NF Panelboard Systems
Miniature Circuit Breaker, Amps 100 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 125/250V DC, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Three, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 2.94 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 6.00
- Package Height: 5.00
- Package Weight: 3.25
Product info last updated on January 15, 2026 12:04am UTC
Category: Circuit Protection
