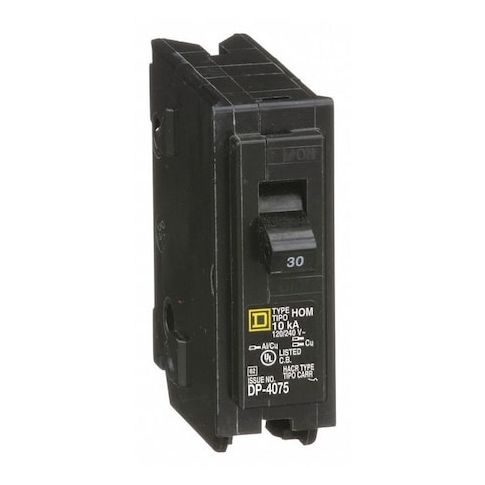

Miniature Circuit Breaker, HOMELINE Series, 30A, 1 Pole, 120V AC, 10kA at 120V AC MPN:HOM130
Free Shipping
In Stock
Protect your electrical systems with the reliable Homeline miniature circuit breaker from Square D. Designed for fast installation and superior circuit protection, this 30A, 1-pole breaker is perfect for residential and commercial applications. With a 10kA breaking capacity, it provides exceptional protection against electrical surges and faults. Plug-in mounting makes installation a breeze, and the clamp terminal accepts 2 wires (14 AWG to 8 AWG copper or aluminum). UL Listed and HACR rated, this circuit breaker is ideal for use in load centers, panel boards, and other electrical systems where reliable protection is essential.
Top product features:
- Provides standard circuit protection
- Has a breaking capacity of 10kA at 120V AC
- Accepts 2 wires with a clamp terminal that can accommodate copper or aluminum wire in the range of 14 AWG to 8 AWG
Top product applications:
- Residential Electrical Panel Installation
- Electrical Service Upgrade
- New Home Construction Electrical Systems
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 30A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.00
- Package Height: 3.00
- Package Weight: 0.33
