Terminal Block, Solderless Box Lug, 1 Pole, 30 A, 600 V AC/DC, 10 AWG, Screw Termination, Gray MPN:9080GME6
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1847912

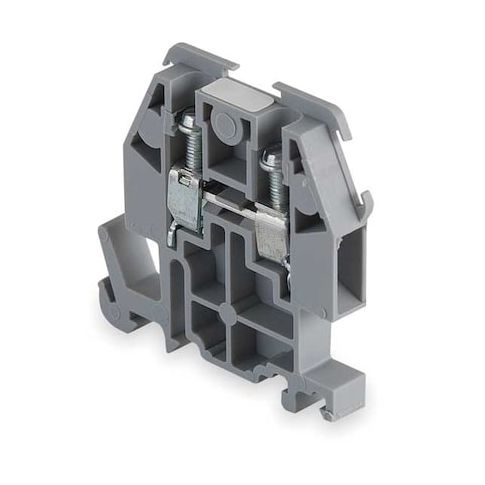

Terminal Block, Solderless Box Lug, 1 Pole, 30 A, 600 V AC/DC, 10 AWG, Screw Termination, Gray
The Square D Terminal Block is a reliable and efficient solution for secure connections in industrial and commercial settings. With a maximum voltage of 600 V AC/DC and a current rating of 30 A, it's ideal for applications such as circuit protection, panel building, and electrical distribution. The screw termination design and 10 AWG wire capacity ensure easy installation and high conductivity. The compact design and DIN rail mounting make it perfect for space-saving applications. CE, CSA, and UL certified, this terminal block meets rigorous safety standards and is RoHS compliant, making it a great choice for a wide range of industries.
Top product features:
- 1 Pole design allows for single conductor connection.
- Screw termination provides a secure and easy-to-use connection method.
- 30 A current rating supports high-amperage applications.
Top product applications:
- Power Distribution Systems
- Industrial Control Panels
- Electrical Panel Boards
Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 30 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 10 AWG, Housing Color Gray, Maximum Voltage 600 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 3 1/32 in, Overall Depth 0.24 in, Overall Length 1.82 in, Overall Width 1.72 in, Standards CE, CSA Approved, RoHS Compliant, UL Component Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.80
- Package Height: 0.30
- Package Weight: 0.02
Product info last updated on February 23, 2026 7:02am UTC
Category: Electrical Connectors
