Magnetic Motor Starter, Non-Reversing, No Auxiliary Contacts, 120V AC, 3 P, Screw Clamp MPN:8536SDO1V02S
Free Shipping
In Stock

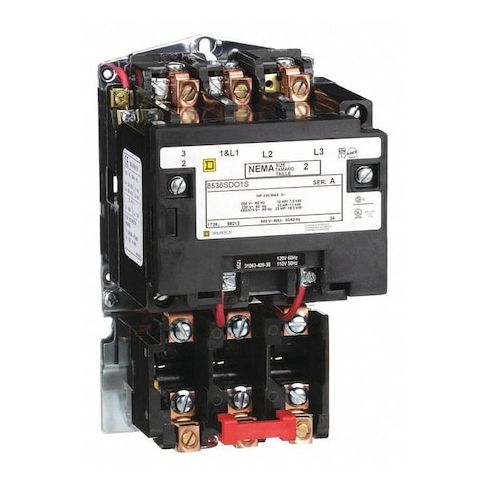

This Square D Magnetic Motor Starter is a reliable and efficient solution for full voltage starting and stopping of AC squirrel cage motors. Ideal for use in a variety of applications, including industrial and commercial settings, this non-reversing starter features a 45 ampere rating and 3 phase ratings of 10 HP at 200 VAC, 15 HP at 230 VAC, and 25 HP at 460 and 575 VAC. With a melting alloy type overload relay and a 5 kA maximum SCCR, this starter provides enhanced safety and protection. Its compact design and wide range of accessories make it a versatile and convenient choice for motor control applications.
Top product features:
- Full voltage starting and stopping of AC squirrel cage motors
- Melting alloy type overload relay that senses over current conditions using Type B thermal units
- Separate control of the operating coil with a 110/120 VAC 50/60 Hz rating
Top product applications:
- Full voltage starting and stopping of AC squirrel cage motors
- Industrial control systems that require a non-reversing motor starter
- Applications that require a compact, 3-pole motor starter with a 45 ampere rating
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 2 non-reversing starter has a 45 ampere rating. This NEMA Size 2 motor starter has 3 phase ratings of 10 HP at 200 VAC, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 7.81 inches tall, 4.31 inches wide and 4.94 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.40
- Package Width: 6.60
- Package Height: 7.00
- Package Weight: 6.75
