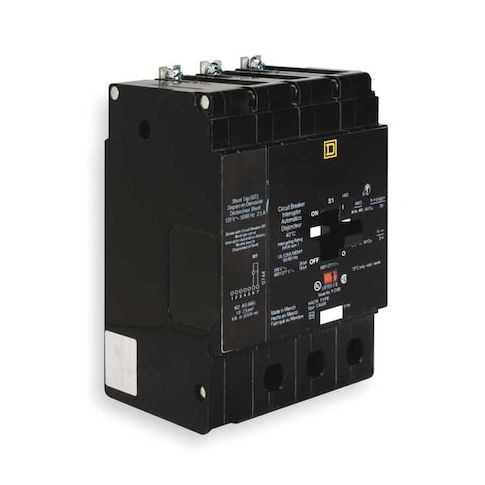

Miniature Circuit Breaker, E FRAME Series, 25A, 3 Pole, 277/480V AC, 25kA at 120V AC MPN:EDB34025SA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1809911
Miniature Circuit Breaker, E FRAME Series, 25A, 3 Pole, 277/480V AC, 25kA at 120V AC
Protect your electrical systems with the Square D E FRAME Series Miniature Circuit Breaker, designed for 3-pole applications up to 277/480V AC. With a 25A rating and 25kA interrupting capacity at 120V AC, this circuit breaker provides reliable protection against overloads and short circuits. Suitable for use with Square D NF panelboards, it offers a compact design with a bolt-on mounting style and toggle actuator. Ideal for commercial and industrial settings, this circuit breaker helps ensure safe and efficient electrical operation, making it a valuable addition to any electrical system.
Top product features:
- Trip-free mechanism for safe and easy operation
- Three-pole design for controlling multiple circuits
- Shunt trip mechanism for automatic circuit interruption
Top product applications:
- Residential electrical panel upgrades
- Commercial electrical panel installations
- Industrial electrical panel replacements
Miniature Circuit Breaker, Amps 25 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Shunt Trip, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Three, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 3.92 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 4.90
- Package Height: 4.40
- Package Weight: 3.89
