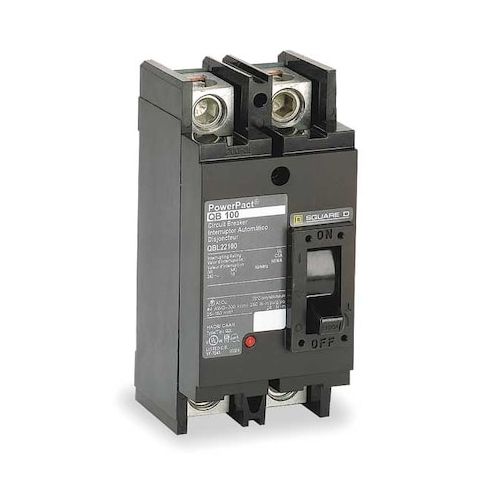

Molded Case Circuit Breaker, POWERPACT Q Series, 100A, 2 Pole, 240V AC, 25kA at 240V AC MPN:QDL22100
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1798194
Molded Case Circuit Breaker, POWERPACT Q Series, 100A, 2 Pole, 240V AC, 25kA at 240V AC
The POWERPACT Q Series Molded Case Circuit Breaker is a reliable and efficient solution for a wide range of applications. This 100A, 2-pole circuit breaker is designed for use in 240V AC systems, providing a maximum short-circuit current rating of 25kA. Its high amp trip setting of 2,400A and low amp trip setting of 1,200A ensure safe and reliable operation. Suitable for free-standing mounting, this circuit breaker is ideal for use in commercial and industrial settings, such as data centers, hospitals, and factories. Its compact design and high-performance capabilities make it an excellent choice for protecting electrical systems and ensuring safe operation.
Top product features:
- It provides a high amp trip setting of 2,400 A for sensitive equipment protection.
- It features a low amp trip setting of 1,200 A for rapid overload detection.
- It has a high interrupting capacity of 25kA at 240V AC for safe and reliable disconnection.
Top product applications:
- Main Electrical Panel
- Commercial Building Power Distribution
- Industrial Power Distribution Systems
Molded Case Circuit Breaker, 100 A Amps, AC Voltage Rating 240V AC, Max. AIR Rating 25kA at 240V AC, For Use With -, Series QD, High Amp Trip Setting 2,400 A, Low Amp Trip Setting 1,200 A, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Terminal Connection Lug, Trip Type Thermal Magnetic, Phase Single, Instantaneous Trip Fixed, Phase Connection Non-Applicable, Frame Size 250A/QD, Circuit Breaker Mounting Style Free Standing, Height 6.47 in, Width 4.5 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 52 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.30
- Package Width: 7.00
- Package Height: 5.60
- Package Weight: 3.40
Product info last updated on February 5, 2026 10:26pm UTC
Category: Circuit Protection
