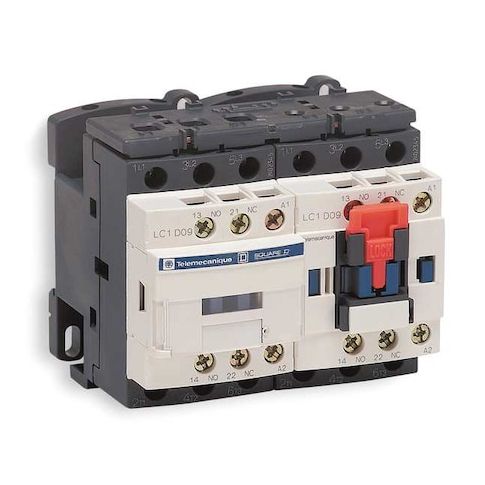

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Reversing, Screw Clamp MPN:LC2D12BD

• The SQUARE D - IEC Magnetic Contactor is a reversing contactor intended for use in motor control and resistive load applications. It is rated for operation within specified temperature ranges, from -40 to 140°F (-40 to 60°C), and can be stored at temperatures between -76 to 176°F (-60 to 80°C). The contactor is compatible with a coil voltage of 24V DC, which may be used in some commercial or industrial settings. Its auxiliary contacts are mechanically linked, designed to operate under various conditions. This product also features screw clamp terminals that allow secure electrical connections.

  Key Features:

• - Reversing action: Allows the direction of motor rotation to be changed.
• - Ambient Air Temperature For Operation: Rated for operation within specified temperature ranges.
• - Auxiliary Contact Configuration: Includes one normally open (NO) and one normally closed (NC) auxiliary contact.
• - Coil Voltage: Compatible with a coil voltage of 24V DC, which may be used in some commercial or industrial settings.
• - Connections – Terminals: Offers multiple power circuit and control circuit screw clamp terminals for flexible installation options.
• - Electrical Durability: Designed to perform up to two million cycles for AC-3 less than 440 V operations
• actual performance may vary
• - Fire Resistance: Tested against high temperatures up to 1562°F (850°C) as per IEC standards
• actual resistance may vary depending on usage conditions
• -Full Load Amps – Inductive/Resistive: Supports full load currents of up-to12 A inductive loads and up-to25 A resistive loads respectively.
