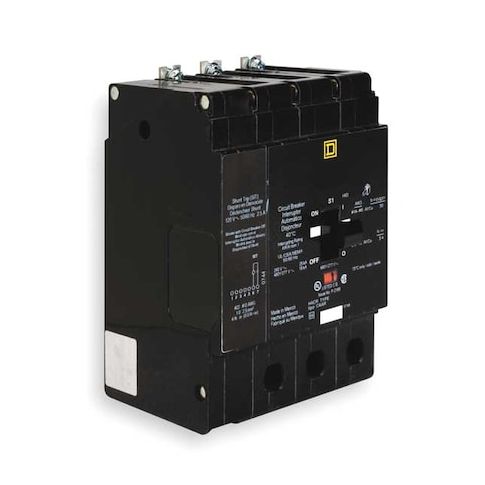

Miniature Circuit Breaker, E FRAME Series, 90A, 3 Pole, 277/480V AC, 25kA at 120V AC MPN:EDB34090SA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1754785
Miniature Circuit Breaker, E FRAME Series, 90A, 3 Pole, 277/480V AC, 25kA at 120V AC
Protect your electrical system with the Square D E FRAME Series 90A 3-Pole Miniature Circuit Breaker. Designed for use with Square D NF Panelboards, this reliable device safeguards against overloads and short circuits in three-phase applications. Its shunt trip mechanism ensures fast and safe shutdown in case of an emergency. With a high interrupting capacity of 25kA at 120V AC and a maximum air rating of 18kA at 277/480V AC, this circuit breaker provides robust protection for industrial and commercial settings. Its compact design and easy installation make it an ideal choice for a wide range of electrical applications.
Top product features:
- Trip circuit when current exceeds 90A
- Provides 3 pole protection for 277/480V AC systems
- Rated for 25kA at 120V AC, providing high fault current interrupting capability
Top product applications:
- Electrical Panelboards
- Industrial Power Distribution Systems
- Commercial Lighting Systems
Miniature Circuit Breaker, Amps 90 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Shunt Trip, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Three, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 3.92 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 4.50
- Package Height: 4.90
- Package Weight: 3.89
Product info last updated on January 15, 2026 6:07am UTC
Category: Circuit Protection
