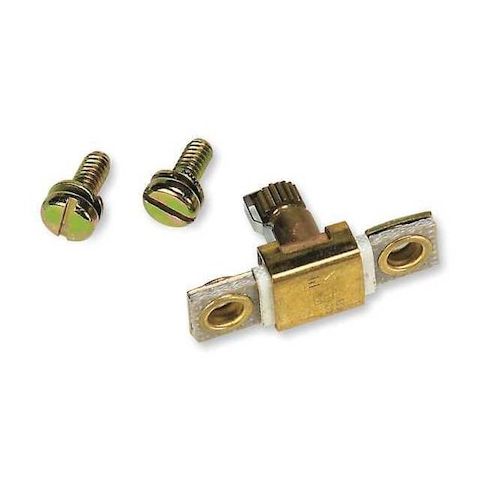

Thermal Unit, 0.86 to 0.96A MPN:A1.02
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1693745
Thermal Unit, 0.86 to 0.96A
Protect your electrical systems with the Square D Thermal Unit, a reliable overload protection solution. This thermal unit is designed to detect and respond to excessive current draw, preventing damage to your equipment and reducing the risk of electrical fires. With a trip class of 20 and a melting alloy design, it offers fast and accurate protection. Suitable for a range of applications, including industrial and commercial settings, this unit is compatible with various frame sizes and Grainger part numbers. Its compact design and ease of installation make it a convenient and effective solution for maintaining electrical system integrity.
Top product features:
- Thermal Unit provides overload protection through a melting alloy mechanism.
- Thermal Unit has a trip class of 20, indicating a high level of sensitivity to overloads.
- Thermal Unit is designed to operate within a range of full load currents, from 0.8 to 1.01 A.
Top product applications:
- Motor Control Centers
- Panelboards
- Switchgear
Thermal Unit, Trip Class 20, Overload Protection Type Melting Alloy, Full Load Current 0.8 to 0.88 A, 0.81 to 0.9 A, 0.84 to 0.93 A, 0.85 to 0.93 A, 0.86 to 0.96 A, 0.87 to 0.96 A, 0.89 to 0.97 A, 0.9 to 0.98 A, 0.92 to 1.01 A, Frame Size A, S, Compatible Grainger Part Number 1H385, 1H386, 1H387, 1H388, 1H389, 1H39, 1H392, 1H393, 2BV58, 2BV66, 2BV67, 2BV71, 2BV72, 48P274, 48P276, 48P277
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 1.20
- Package Height: 0.80
- Package Weight: 0.05
Product info last updated on February 22, 2026 7:14am UTC
Category: Industrial Electrical Controls and Automation
