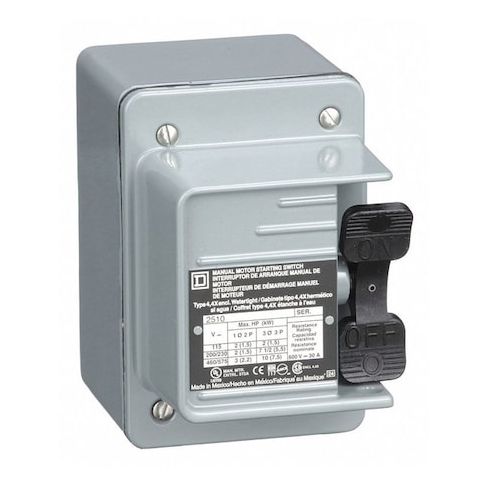

Manual Motor Switch, 30 A, 3 P, 3 Phase, Toggle, Type K, Class 2510 Series, NEMA 4 MPN:2510KW2
Free Shipping
In Stock
The Square D 2510K manual motor switch provides reliable and efficient control of small motors in industrial, commercial, and residential applications. Designed for single or three-phase AC motors, this non-reversing switch offers manual On-Off control and is ideal for applications where overload protection is not required or is provided separately. With a NEMA 4 watertight enclosure and a toggle-operated handle, this switch is perfect for use in harsh environments. Its compact design and UL Listed certification make it a trusted choice for a variety of applications, including HVAC, water treatment, and manufacturing.
Top product features:
- Toggle operated manual On Off control of small motors
- Provides manual control of single or three phase AC motors
- Has a NEMA 4 watertight and dusttight die cast zinc alloy enclosure for protection from the environment
Top product applications:
- Industrial applications where overload protection is not required or is provided separately.
- Commercial applications where manual On Off control of small motors is needed.
- Residential applications requiring manual control of small motors.
2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switch is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, 10 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. A NEMA 4 watertight and dusttight die cast zinc alloy enclosure is used to protect this manual motor switch. This enclosure has one conduit entry on the bottom. The 0.75 inch conduit entry is tapped with number 14 pipe threads. This device is 4.38 inches tall, 3.00 inches wide and 4.25 inches deep. A toggle handle is used to turn the manual starter on and off. The toggle handle can be padlocked in the off position. This device is UL Listed and CSA certified.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.40
- Package Width: 4.80
- Package Height: 3.70
- Package Weight: 2.75
