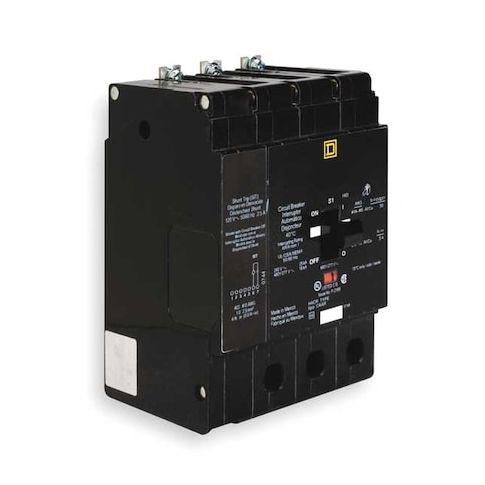

Miniature Circuit Breaker, E FRAME Series, 70A, 3 Pole, 277/480V AC, 25kA at 120V AC MPN:EDB34070SA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1655857
Miniature Circuit Breaker, E FRAME Series, 70A, 3 Pole, 277/480V AC, 25kA at 120V AC
Protect your electrical system with the Square D E FRAME Series 70A 3-Pole Miniature Circuit Breaker, designed for use in NF Panelboards. This reliable device features a shunt trip mechanism and toggle actuator, ensuring safe and efficient operation. With a maximum air rating of 18kA at 277/480V AC, it provides robust protection against electrical surges. Suitable for commercial and industrial applications, it's ideal for use in areas with high electrical demands. Its compact size and bolt-on mounting style make it easy to integrate into existing systems, providing peace of mind for electrical professionals and facility managers alike.
Top product features:
- Trip circuit breaker automatically interrupts power to the circuit in the event of an overload or short circuit
- Trip circuit breaker is shunt trip type, allowing for remote control of the circuit
- Circuit breaker is rated for 25kA at 120V AC, providing a high level of protection against electrical faults
Top product applications:
- Commercial and Industrial Electrical Systems
- Residential Electrical Systems for Large Homes
- Data Centers and IT Infrastructure
Miniature Circuit Breaker, Amps 70 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Shunt Trip, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Three, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 3.92 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 4.30
- Package Height: 4.90
- Package Weight: 3.83
Product info last updated on January 31, 2026 2:11pm UTC
Category: Circuit Protection
