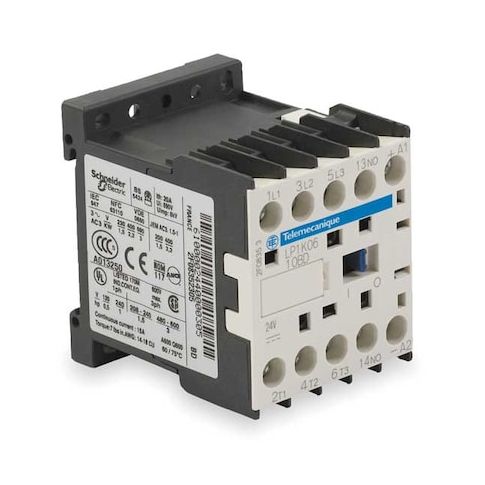

IEC Miniature Magnetic Contactor, 1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:LP1K0610BD

• The IEC Miniature Magnetic Contactor (Square D) is a compact, IEC-style electromagnetic switch used to control lower-power circuits. It is a 3-pole, non-reversing device with a 24 V DC coil and 1 normally open auxiliary contact, providing 3 normally open main contacts and an additional NO auxiliary contact. Suitable for use in DIN rail mounting configurations as specified. It is rated for operation within the specified voltage ranges and load conditions.

  Key features

• - Item: IEC Miniature Magnetic Contactor
• Series/Frame: TeSys
• Contactor Style: IEC
• Reversing: No
• Action: Non-Reversing
• - Coil Voltage: 24 V DC
• - Poles/Main Contacts: 3 poles
• 3 Normally Open main contacts
• - Auxiliary Contacts: 1 NO (Auxiliary Contact Configuration: 1NO
• Form: 1NO)
• Includes Auxiliary Contacts: Yes
• - Mounting: DIN Rail, Plate
• Mounts On: Plate, Rail
• Terminal Connection: Screw Clamp
• - Electrical ratings: Rated Voltage 690 V AC
• Rated Insulation Volts 600/690 V
• Overvoltage CAT III
• - Power/Current: Rated Making Capacity 110 A
• Full Load Amps Inductive 6 A
• Full Load Amps Resistive 15 A
• - Performance: rated to withstand impulse voltages up to 8 kV under test conditions
• Frequency 50/60 Hz
• typical operating times based on standard testing procedures
• actual performance may vary
• - Mechanical/dimensions: Height 1.77 in
• Width 1.77 in
• Depth 2.24 in
• Net Weight 0.225 kg
• Mechanical Durability 10 Mcycles
• - Enclosure/standards: does not include an enclosure
• installation should comply with applicable standards and safety requirements
• Standards CSA, UKCA, UL Listed
• - Other: Fuse Amps 25 A (Power Circuit), 10 A (Signalling Circuit)
• Reversing: No
• Impedance 3 mΩ
• Fire Rating UL 94 V1, NF F 16-101, NF F 16-102
