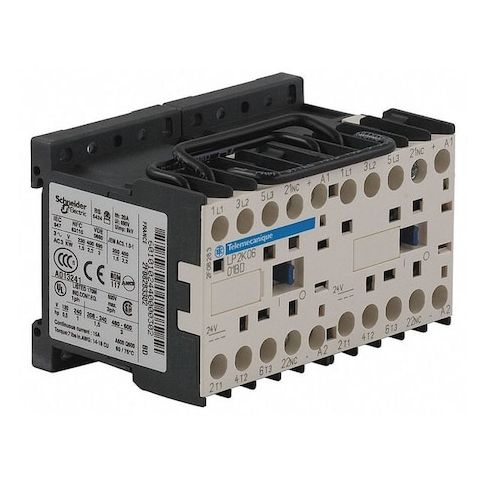

IEC Miniature Magnetic Contactor, 1NC, 24V DC, 3 P, Reversing, Screw Clamp MPN:LP2K0901BD

• The IEC Miniature Magnetic Contactor is a compact, electrically operated switching device designed to perform reversing switching functions as per specifications. It is a 3-pole (3P) device energized by a 24 V DC coil and features 3 normally open (3 NO) main contacts plus 1 normally closed (1 NC) auxiliary contact (typical operating time as specified in technical data). The unit uses screw clamp terminals, can be mounted on a DIN rail or plate, and is supplied without an enclosure (IP20). It is rated for use with motor control and resistive loads within specified parameters and is part of the TeSys K family.

  - Action: Reversing

• - Coil Voltage: 24 V DC
• - Poles and contacts: 3P
• 3 NO main contacts
• 1 NC auxiliary contact (typical operating time as specified in technical data)
• - Terminals: Screw Clamp
• - Mounting: DIN Rail, Plate (Mounts On: Plate, Rail)
• - Enclosure/IP: No Enclosure
• IP20
• - Ambient temperature (operation/storage): -13 to 122 °F (-25 to 50 °C) / -58 to 176 °F (-50 to 80 °C)
• - Rated insulation voltage: 600/690 V
• - Rated making capacity: 110 A
• - Rated operational current: 9 A (AC-3/AC-3e up to 440 V) for power circuit
• 20 A (AC-1 up to 690 V)
• - Full load current: 20 A resistive
• 9 A inductive
• - Frequency: 50/60 Hz
• - Impedance: 3 mΩ
• - Impulse withstand voltage: 8 kV
• - Max operating voltage: 690 V AC
• - Mechanical/ Electrical durability: 5 Mcycles
• 1,300,000 cycles (and 180,000 cycles)
• - Operating time: 30–40 ms (energisation/NO closing)
• 10 ms (de-energisation/NO opening)
• - Dimensions: Width 3.54 in
• Height 2.28 in
• Depth 2.24 in
• - Weight: 0.48 kg
• - Series: TeSys K
• - Certifications: CB Scheme
• CCC
• UL
• CSA
• EAC
• CE
• UKCA
• - Reversing: Yes
• - Power ratings are provided based on standard test conditions
• actual performance may vary depending on application conditions
