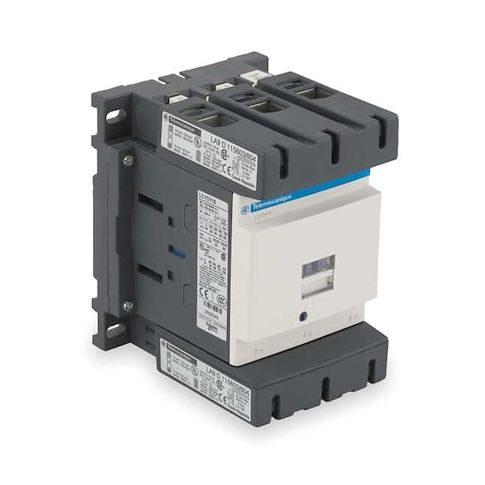

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D115BD

• The SQUARE D IEC Magnetic Contactor is a 3-pole, non-reversing power switch rated for operation within IEC-standard control circuits. It uses a 24 V DC coil to open and close main contacts and includes two auxiliary contacts (1NO/1NC) for signaling, all connected via screw clamp terminals. This TeSys Deca series device is intended for use in motor control and resistive-load applications and is configured as an IEC-style contactor without an enclosure.

  - Coil voltage: 24 V DC

• - Action: Non-Reversing
• - Poles: 3
• - Main contacts: 3 normally open
• - Auxiliary contacts: 2 total (1NO/1NC)
• - Coil and contact configuration: 1NC/1NO auxiliary
• - Mounting: DIN Rail, Plate
• - Electrical connection: Screw Clamp
• - Enclosure: Without an enclosure
• IP20
• - Embedded suppression: Yes
• - Protective cover: Yes
• - Series: TeSys Deca (IEC)
• - Rated voltage: 1000 V AC, 300 V DC
• - Frequency: 50/60 Hz
• - Weight: 2.5 kg
• - Dimensions (approx.): Overall Height 6.22 in
• Overall Depth 5.35 in
• Overall Width 0.47 in
• - Max voltage rating: 1000 V AC
• - Rated making capacity: 1260 A @ 440 V (Power Circuit)
• 140 A (AC Signalling)
• 250 A (DC Signalling)
