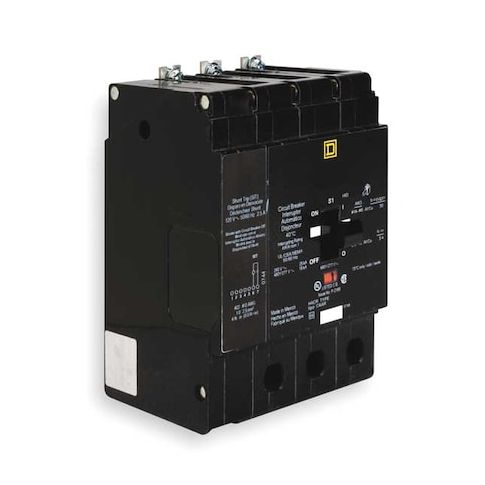

Miniature Circuit Breaker, E FRAME Series, 15A, 3 Pole, 277/480V AC, 25kA at 120V AC MPN:EDB34015SA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1587214
Miniature Circuit Breaker, E FRAME Series, 15A, 3 Pole, 277/480V AC, 25kA at 120V AC
Protect your electrical systems with the Square D E FRAME Series Miniature Circuit Breaker, designed for use in NF Panelboards. This 3-pole, 15A breaker offers reliable shunt trip protection against overloads and short circuits, with a maximum interrupting rating of 25kA at 120V AC. Its compact size and bolt-on mounting make it ideal for a variety of applications, including commercial and industrial settings. With a maximum operating temperature of 104°F, this breaker provides reliable performance in demanding environments. Its compatibility with Square D NF Panelboards ensures seamless integration and easy installation.
Top product features:
- 15A rating for circuit protection
- Three-pole design for three-phase applications
- 25kA interrupting rating at 120V AC for high-current circuit protection
Top product applications:
- Residential electrical panelboards
- Commercial electrical panelboards
- Industrial electrical panelboards
Miniature Circuit Breaker, Amps 15 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Shunt Trip, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Three, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 3.92 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 4.30
- Package Height: 4.90
- Package Weight: 3.86
Product info last updated on February 4, 2026 2:59pm UTC
Category: Circuit Protection
