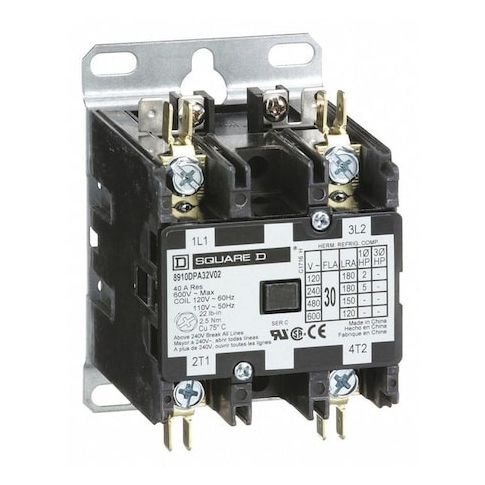

Definite Purpose Magnetic Contactor, 120V AC, 2 P, Non-Reversing, 1 Phase MPN:8910DPA32V02
Free Shipping
In Stock
The SQUARE D 8910DPA32V02 Definite Purpose Magnetic Contactor is a heavy-duty electrical device designed to control power flow in industrial applications. It's commonly used in HVAC, data processing, and manufacturing to manage and automate machinery operations. This non-reversing contactor ensures constant current flow direction, making it ideal for applications that require precise control. Its 120V AC rating and 2 pole design make it compatible with a range of power supplies. With a maximum current rating of 30A inductive and 40A resistive, this contactor is suitable for use in a variety of industrial settings, including those with single-phase power supplies.
Top product features:
- Operates with a constant current flow direction, suitable for non-reversing applications.
- Designed to control power supply in response to electrical impulses.
- Compatible with single phase power supplies ranging from 2 hp at 120 volts to 5 hp at 230/240 volts.
Top product applications:
- HVAC
- Data processing
- Manufacturing
The SQUARE D - 8910DPA32V02 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. This tool operates by responding to electrical impulses, allowing or interrupting power supply based on need. It's commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions with a constant current flow direction.
- Coil Voltage: Rated for operation within the specified voltage range of 120V AC.
- Control Circuit Voltage: Designed to operate within specific voltages based on frequency and geographical region (120 V AC 60 Hz
- 110 V AC 50 Hz).
- Electrical Connection: Can be attached to an electrical circuit using binder head or quick connect terminals.
- Full Load Amps-Inductive/Resistive: Specified for maximum currents of up to 30 A (inductive loads) and up to 40 A (resistive loads). Overheating or damage may occur if these limits are exceeded.
- Horsepower @ Single Phase - Compatible with single phase power supplies ranging from a minimum of 2 hp at a voltage level of 120 volts, up to a maximum of 5 hp at voltage levels including 230 volts and 240 volts.
- Pole Contact Composition: Contains two Normally Open contacts that determine how electrical circuits are controlled during operation
- Rated Operational Voltage: Is rated for controlling an electrical circuit within the specified operational voltage limit up to 600VAC
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 3.20
- Package Height: 3.80
- Package Weight: 0.96
