Thermal Unit, 86.0 to 133A MPN:CC196.0
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1463201

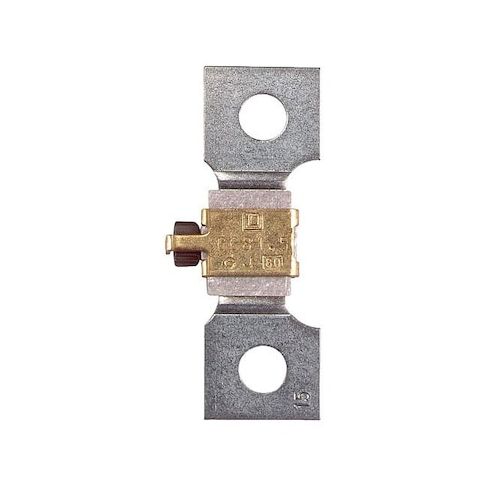

Thermal Unit, 86.0 to 133A
Protect your electrical systems with the Square D Thermal Unit, designed for versatility and reliability. This thermal unit provides overload protection for a wide range of applications, including commercial and industrial settings. With a trip class of 20 and a melting alloy design, it ensures safe and efficient operation. Suitable for use in NEMA size 3 and frame size CC configurations, this unit is ideal for systems with full load currents between 78.5 and 86 amps. Its compact size and lightweight design make it easy to integrate into existing systems, providing a reliable and cost-effective solution for electrical protection and control.
Top product features:
- Trip Class 20 provides high-level protection against overcurrent conditions
- Overload Protection Type Melting Alloy ensures reliable and automatic shutdown in case of excessive current
- Full Load Current range of 78.5 to 86 A allows for flexible and efficient operation within a specific power range
Top product applications:
- Motor Protection
- Motor Control Centers
- Power Distribution Units
Thermal Unit, Trip Class 20, Overload Protection Type Melting Alloy, Full Load Current 78.5 to 86 A, 83 to 86 A, 83.4 to 86 A, NEMA Size 3, 4, Frame Size CC, S
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.30
- Package Height: 0.80
- Package Weight: 0.10
Product info last updated on February 18, 2026 1:25am UTC
Category: Industrial Electrical Controls and Automation
