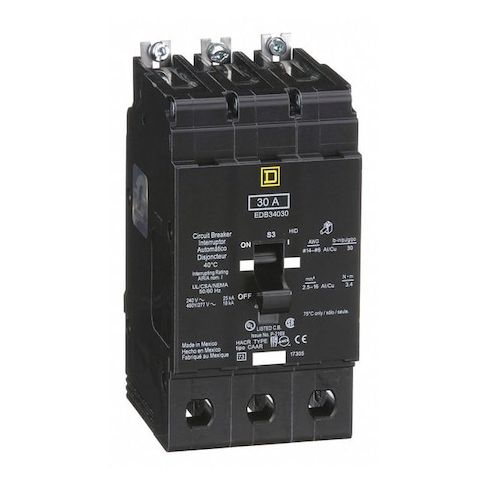

Miniature Circuit Breaker, E FRAME Series, 30A, 3 Pole, 277/480V AC, 25kA at 120V AC MPN:EDB34030
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1450522
Miniature Circuit Breaker, E FRAME Series, 30A, 3 Pole, 277/480V AC, 25kA at 120V AC
Protect your electrical system with the Square D E FRAME Series Miniature Circuit Breaker, designed for use in NF Panelboards. This 3-pole, 30A circuit breaker handles 277/480V AC and 25kA at 120V AC, providing reliable protection against electrical overloads and short circuits. Its compact size and bolt-on mounting style make it easy to install, while its toggle actuator and lug terminals ensure secure connections. Ideal for applications such as commercial and industrial electrical systems, this circuit breaker offers peace of mind and helps prevent electrical fires and equipment damage. Its durable construction and high operating temperature rating ensure long-lasting performance.
Top product features:
- Three pole circuit breaker
- 30A AC current rating
- 25kA short-circuit interrupting capacity at 120V AC
Top product applications:
- Residential Electrical Panelboards
- Commercial Electrical Panelboards
- Industrial Electrical Panelboards
Miniature Circuit Breaker, Amps 30 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 125V DC, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Three, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 2.94 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 6.00
- Package Height: 4.75
- Package Weight: 3.20
Product info last updated on February 10, 2026 1:51pm UTC
Category: Circuit Protection
