Definite Purpose Magnetic Contactor, 277V AC, 4 P, Non-Reversing, 3 Phase, Box Lug & Quick Connect MPN:8910DPA44V04
Free Shipping
In Stock

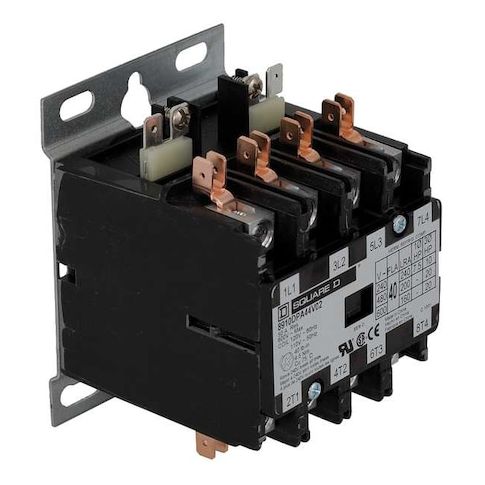

The SQUARE D 8910DPA44V04 is an industrial-grade magnetic contactor designed for heavy-duty applications. It's ideal for managing and automating machinery operations in various sectors, including HVAC, data processing, and manufacturing. This non-reversing contactor operates at 277V AC and features four poles for versatile control. It can handle continuous current up to 40A for inductive loads and 50A for resistive loads, making it a reliable choice for motor control. With its compact design and robust features, the SQUARE D 8910DPA44V04 is perfect for industries requiring efficient and precise power management.
Top product features:
- The contactor functions as non-reversing, where the current flow direction remains constant.
- It operates at a coil voltage of 277V AC.
- It is equipped with four poles that can switch circuits simultaneously, providing versatile control in various industrial applications.
Top product applications:
- HVAC
- data processing
- manufacturing
The SQUARE D - 8910DPA44V04 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: The contactor functions as non-reversing where the current flow direction remains constant.
- Coil Voltage: Rated for operation at a coil voltage of 277V AC.
- Depth: Extends into mounting surface or enclosure up to a depth of 3.11 inches.
- Frequency: Specified to operate within an electrical cycle frequency of 60 Hz.
- Full Load Amps-Inductive & Resistive: Rated for continuous current handling up to 40 A for inductive loads and up to 50 A for resistive loads, as per product specifications.
- Horsepower Control Capacity: Compatible with motor control within specified ranges based on single-phase or three-phase power supplies, from 120 volts up to 600 volts
- Locked Rotor Load: Rated to manage the initial surge current when an electric motor starts but is unable to rotate, with values that vary according to specified voltage levels.
- Poles Count: Equipped with four poles that can switch circuits simultaneously providing versatile control in various industrial applications
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.90
- Package Width: 3.20
- Package Height: 3.80
- Package Weight: 1.29
